Argo安装

https://argo-cd.readthedocs.io/en/stable/

kubectl create namespace argocd
wget https://raw.githubusercontent.com/argoproj/argo-cd/v2.13.0/manifests/install.yaml

修改取消HTTPS

# vim install.yaml
      - args:
        - /usr/local/bin/argocd-server
        - --insecure # 添加此行
        env:
        - name: REDIS_PASSWORD
          valueFrom:
            secretKeyRef:
              key: auth
              name: argocd-redis
        - name: ARGOCD_SERVER_INSECURE

kubectl apply -n argocd -f  install.yaml

Argocd Ingress

argocd-ingress.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: argocd
  namespace: argocd
spec:
  ingressClassName: nginx
  rules:
    - host: argocd.sundayhk.com
      http:
        paths:
          - pathType: Prefix
            backend:
              service:
                name: argocd-server
                port:
                  number: 80
            path: /

获取admin密码

root@k8s-master01:~# kubectl -n argocd get secret argocd-initial-admin-secret -o jsonpath="{.data.password}" | base64 -d

argocd 客户端

wget -O /usr/local/bin/argocd https://github.com/argoproj/argo-cd/releases/download/v2.13.0/argocd-linux-amd64
chmod +x /usr/local/bin/argocd

root@k8s-master01:~# argocd login argocd.sundayhk.com
2024/11/10 11:59:56 maxprocs: Leaving GOMAXPROCS=8: CPU quota undefined
WARNING: server certificate had error: tls: failed to verify certificate: x509: certificate is valid for ingress.local, not argocd.sundayhk.com. Proceed insecurely (y/n)? y
WARN[0001] Failed to invoke grpc call. Use flag --grpc-web in grpc calls. To avoid this warning message, use flag --grpc-web.
Username: admin
Password:
'admin:login' logged in successfully
Context 'argocd.sundayhk.com' updated

修改密码

root@k8s-master01:~# argocd account update-password
2024/11/10 12:04:50 maxprocs: Leaving GOMAXPROCS=8: CPU quota undefined
WARN[0000] Failed to invoke grpc call. Use flag --grpc-web in grpc calls. To avoid this warning message, use flag --grpc-web.
*** Enter password of currently logged in user (admin): # 贴入原密码
*** Enter new password for user admin: # 新密码，密码长度 8-32位
*** Confirm new password for user admin:
Password updated
Context 'argocd.sundayhk.com' updated

修改密码后 新密码会以bcrypt 哈希值存储 argocd-secret中，无法反向解密，若忘记密码只能重置

root@k8s-master01:~# kubectl -n argocd get secret argocd-secret -o jsonpath="{.data.admin\.password}"
JDJhJDEwJGRDaDNEd0l2TmNPS2RGbmxWYmNSSGVCU2JHQmpqOWJtOTJMekdiVGVtVGx5MTl0QWJRU3ptr

root@k8s-master01:~# kubectl -n argocd get secret argocd-secret -o jsonpath="{.data.admin\.password}" | base64 -d
$2a$10$dCh3DwIvNcOKdFnlVbcRHeBSbGBjj9bm92LzGbTemTly19tAbQSzm # bcrypt哈希值

忘记密码，重置密码方法

清空 admin.password 和 admin.passwordMtime 字段，删除并重启 ArgoCD 服务器 Pod，
这将使 ArgoCD 强制重新生成一个新的 admin 密码。

kubectl patch secret argocd-secret -n argocd -p '{"data": {"admin.password": null, "admin.passwordMtime": null}}'

kubectl delete pods -n argocd -l app.kubernetes.io/name=argocd-server

kubectl -n argocd get secret argocd-initial-admin-secret -o jsonpath="{.data.password}" | base64 -d

Gitlab配置

https://github.com/sundayhk/argocd-demo-project

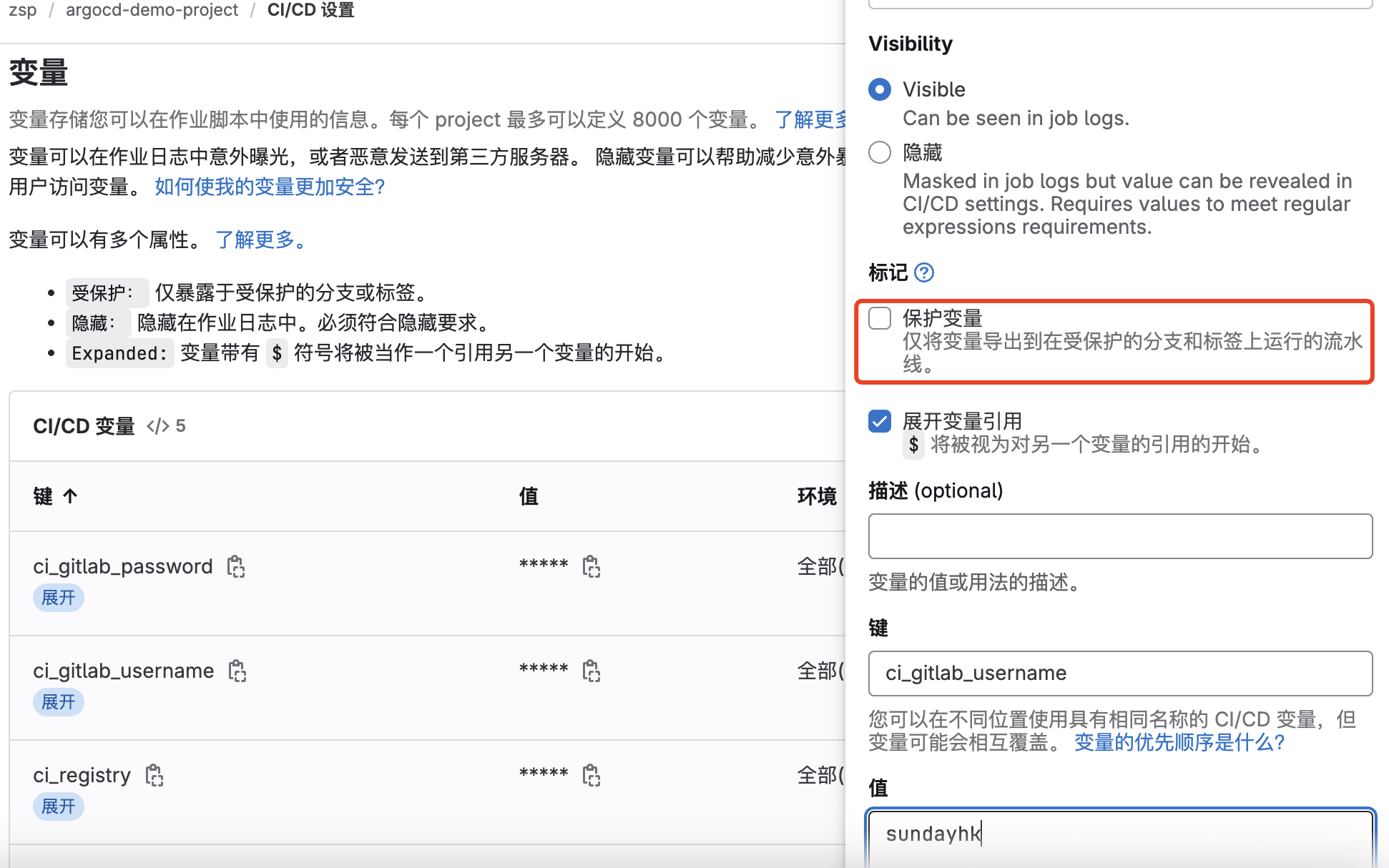

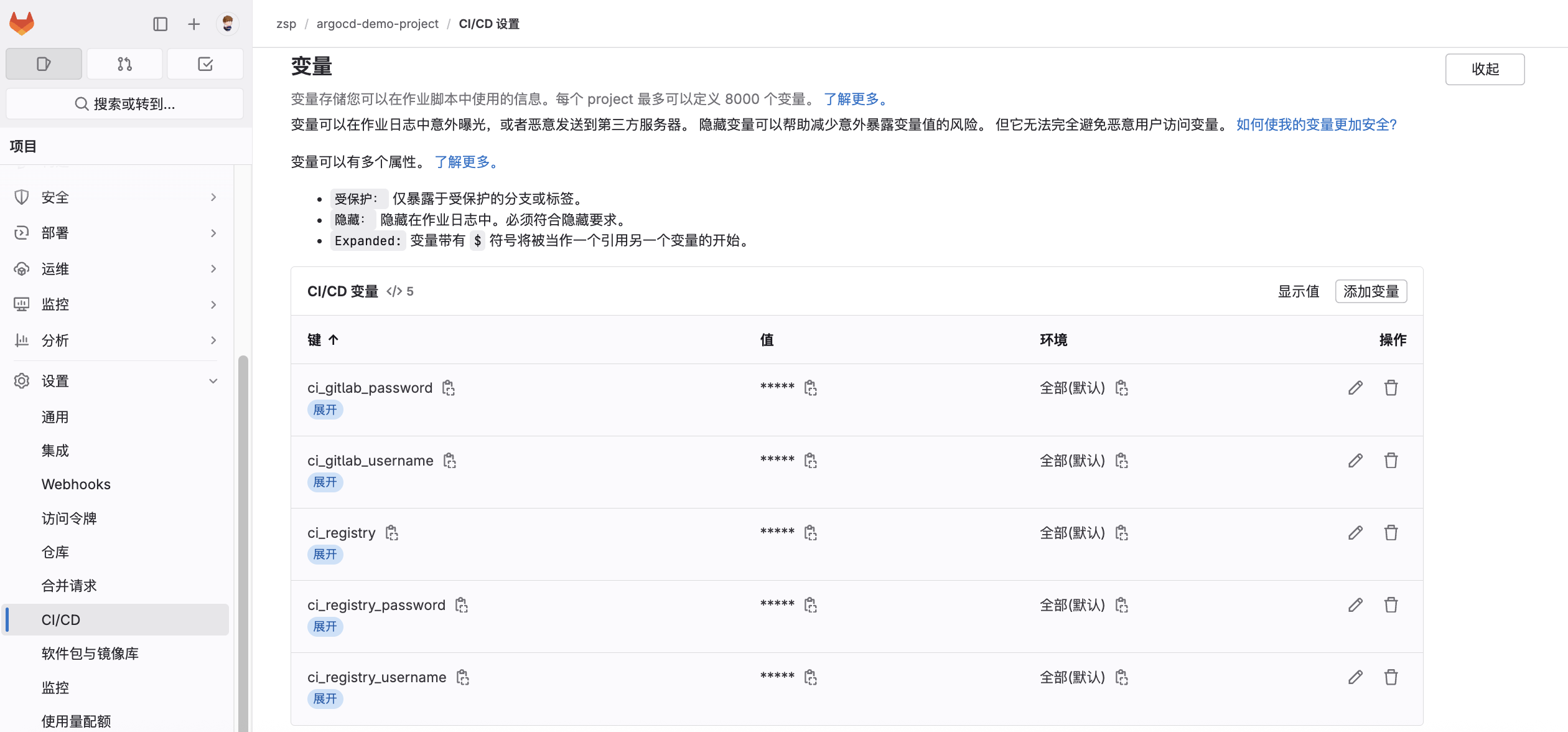

配置项目变量

• ci_gitlab_username : gitlab用户名
• ci_gitlab_password ：gitlab密码
• ci_registry : harbor地址
• ci_registry_username ：harbor用户名
• ci_registry_password ：harbor密码

注：保护变量默认启用，这里要取消，不然会导致非master分支 获取变量为空值

Argocd项目配置

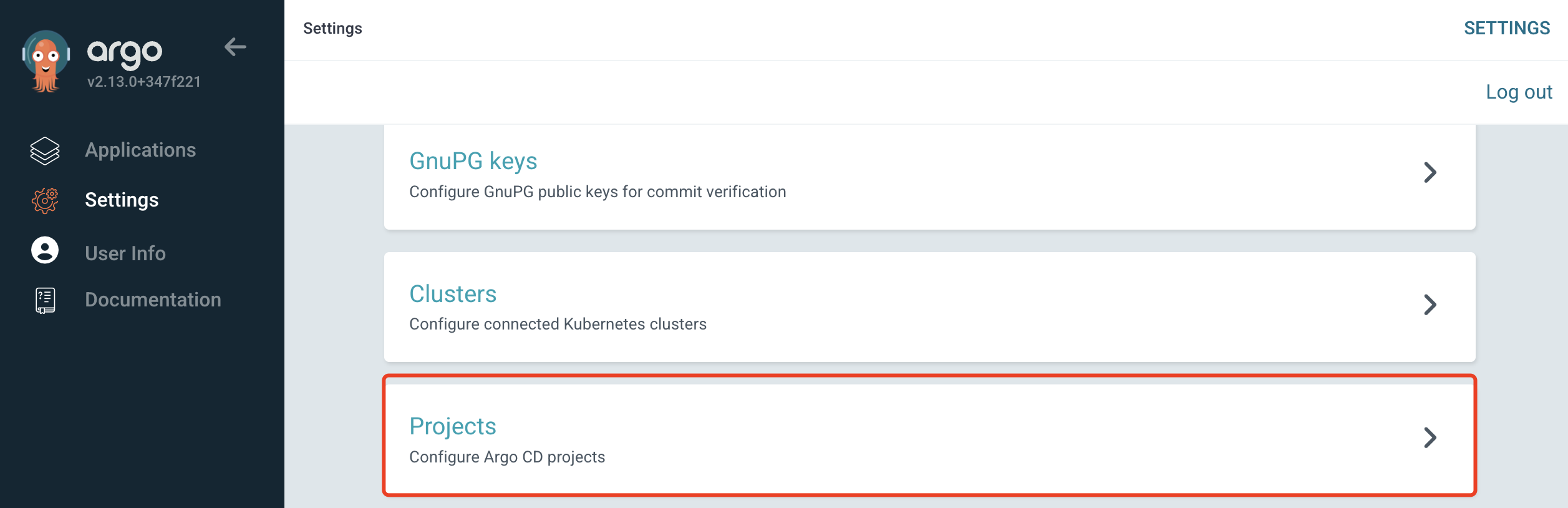

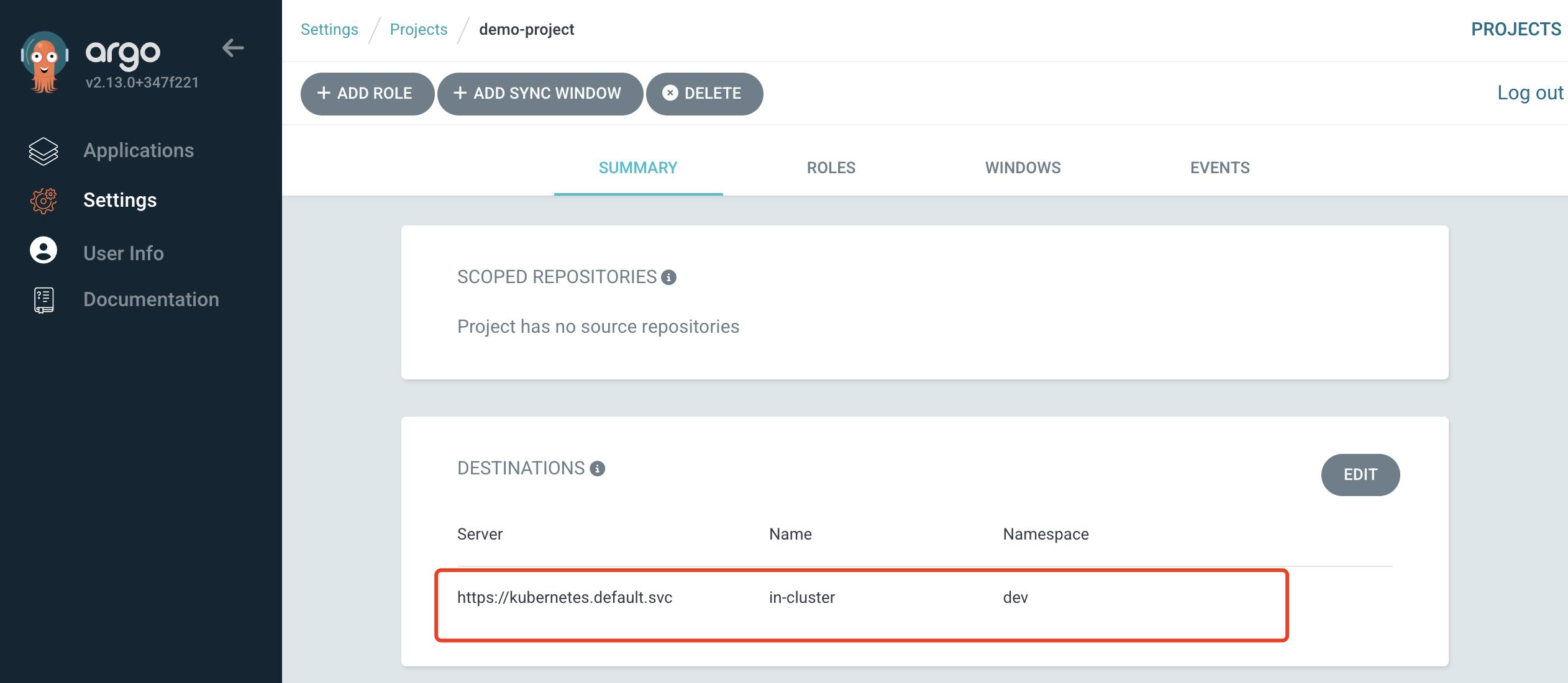

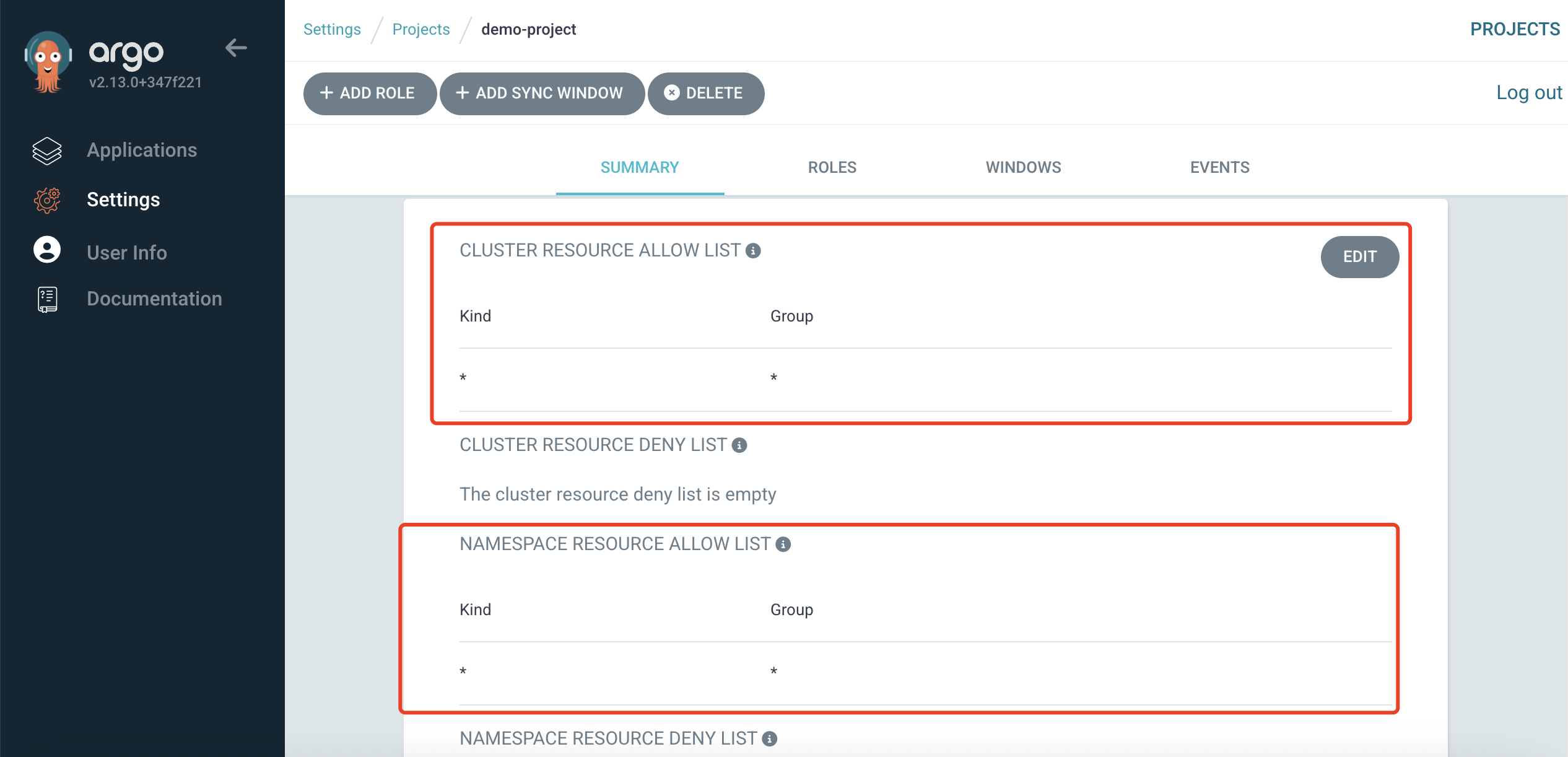

Project配置

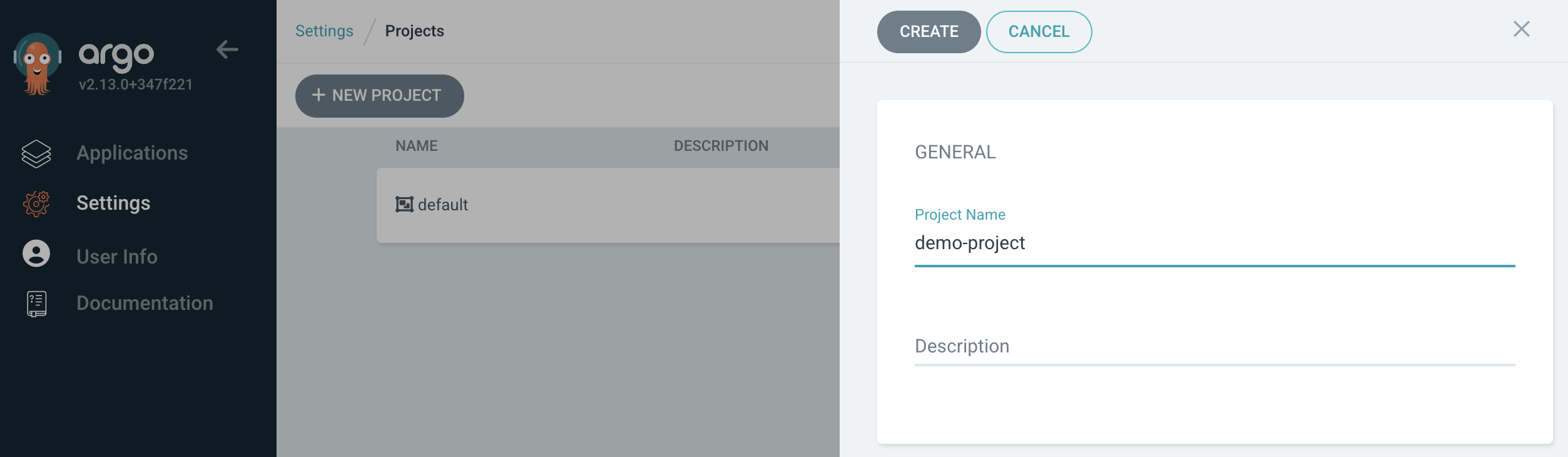

先创建项目

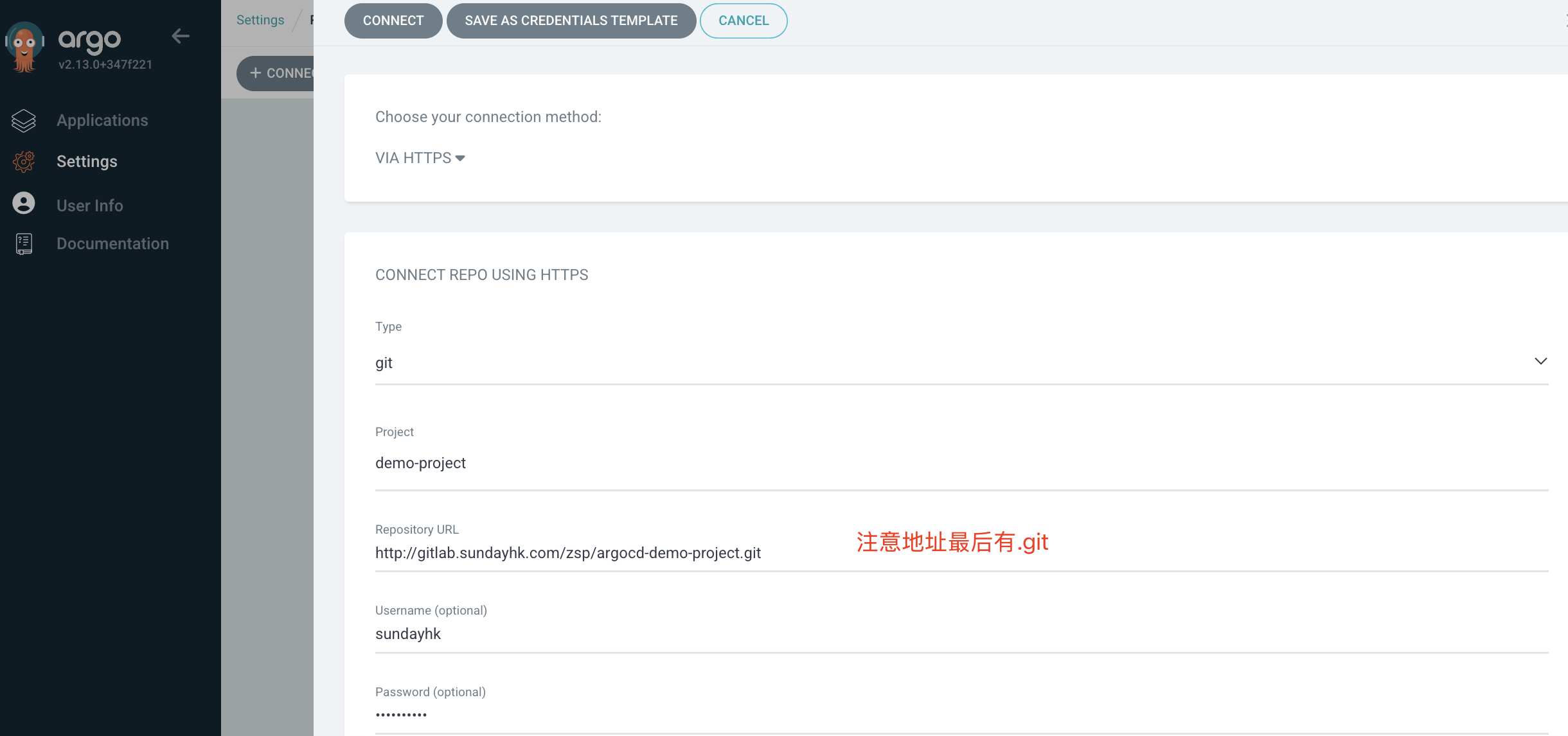

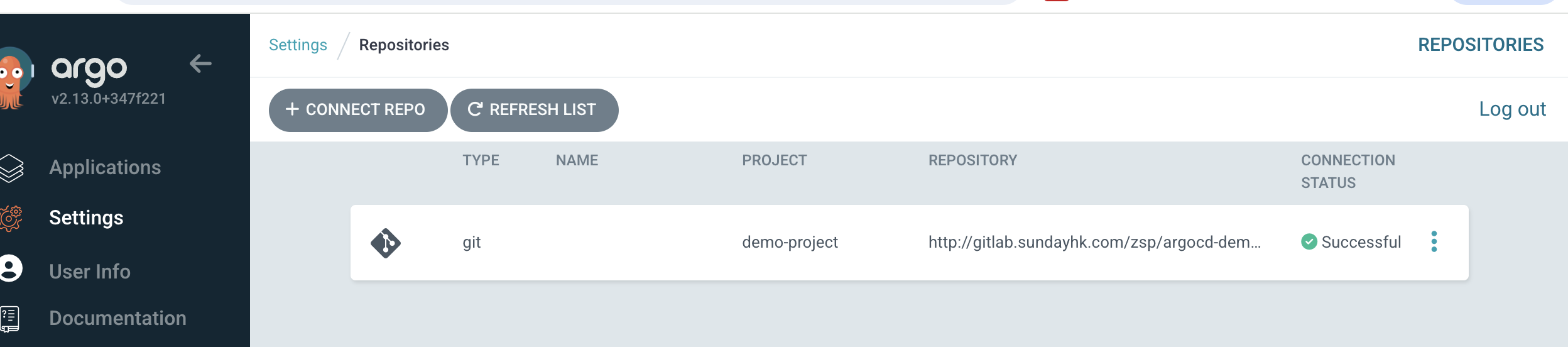

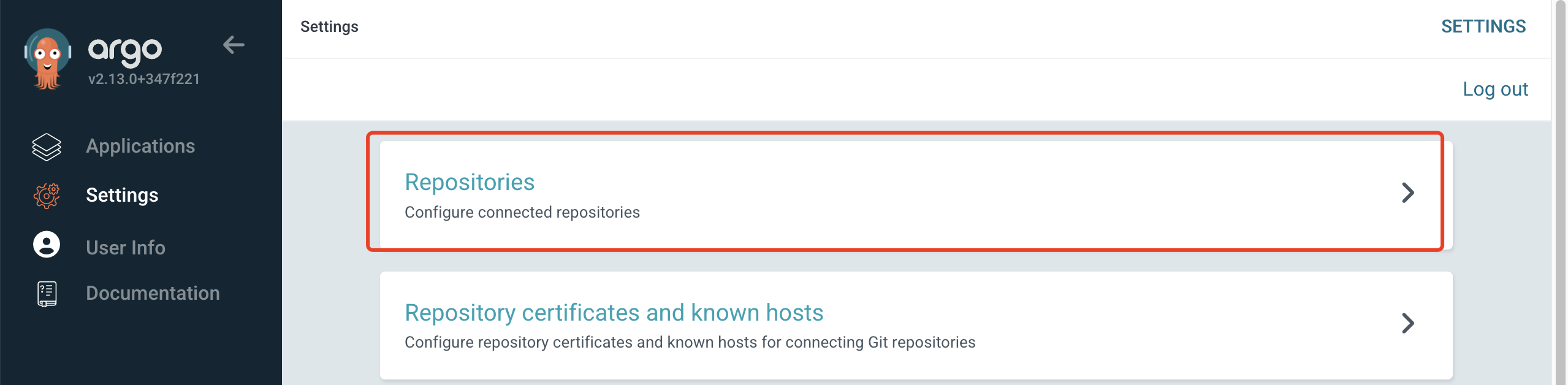

Repositories配置

Application 配置

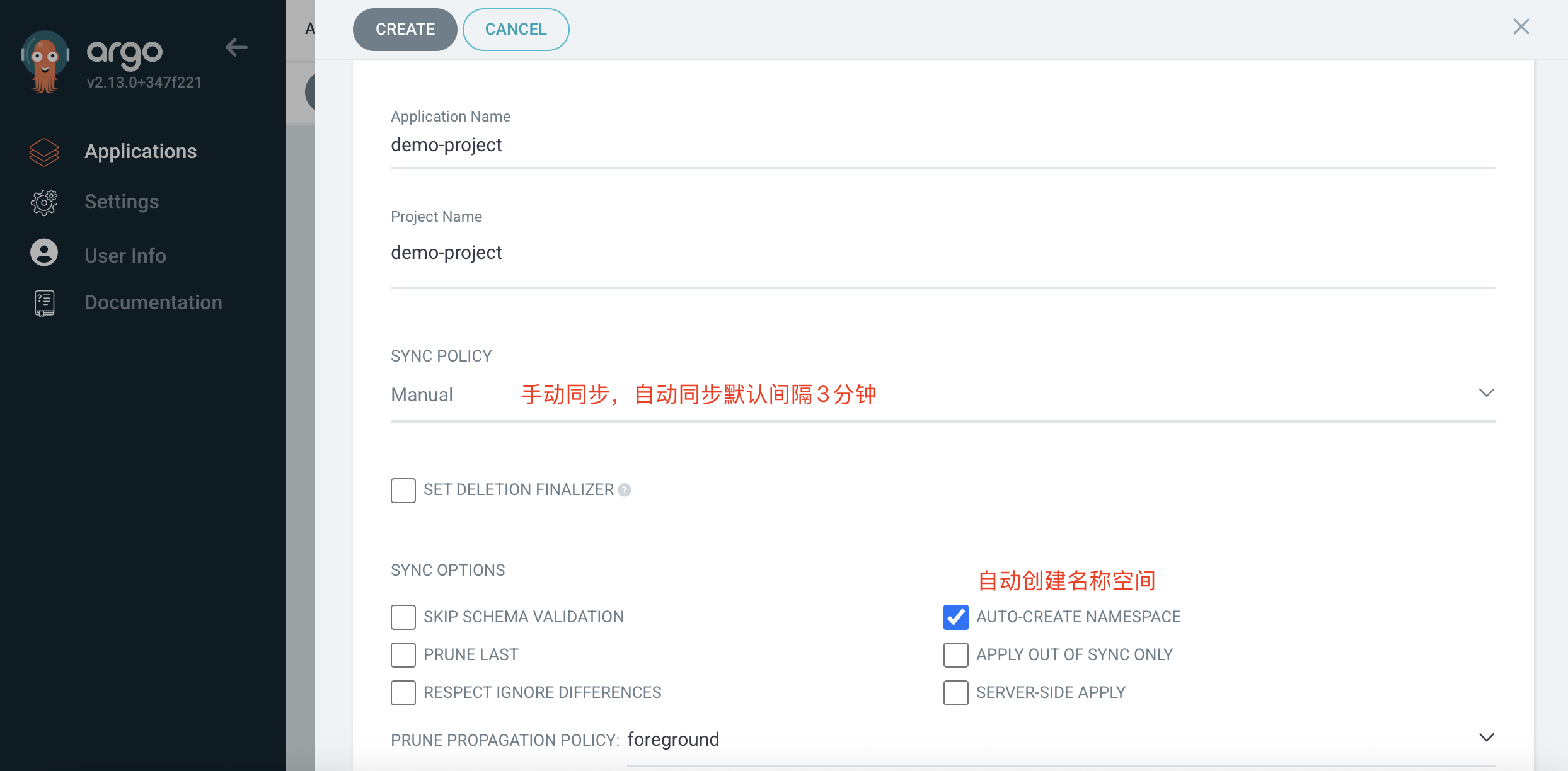

这里先使用手动模式，后面再调整为自动模式

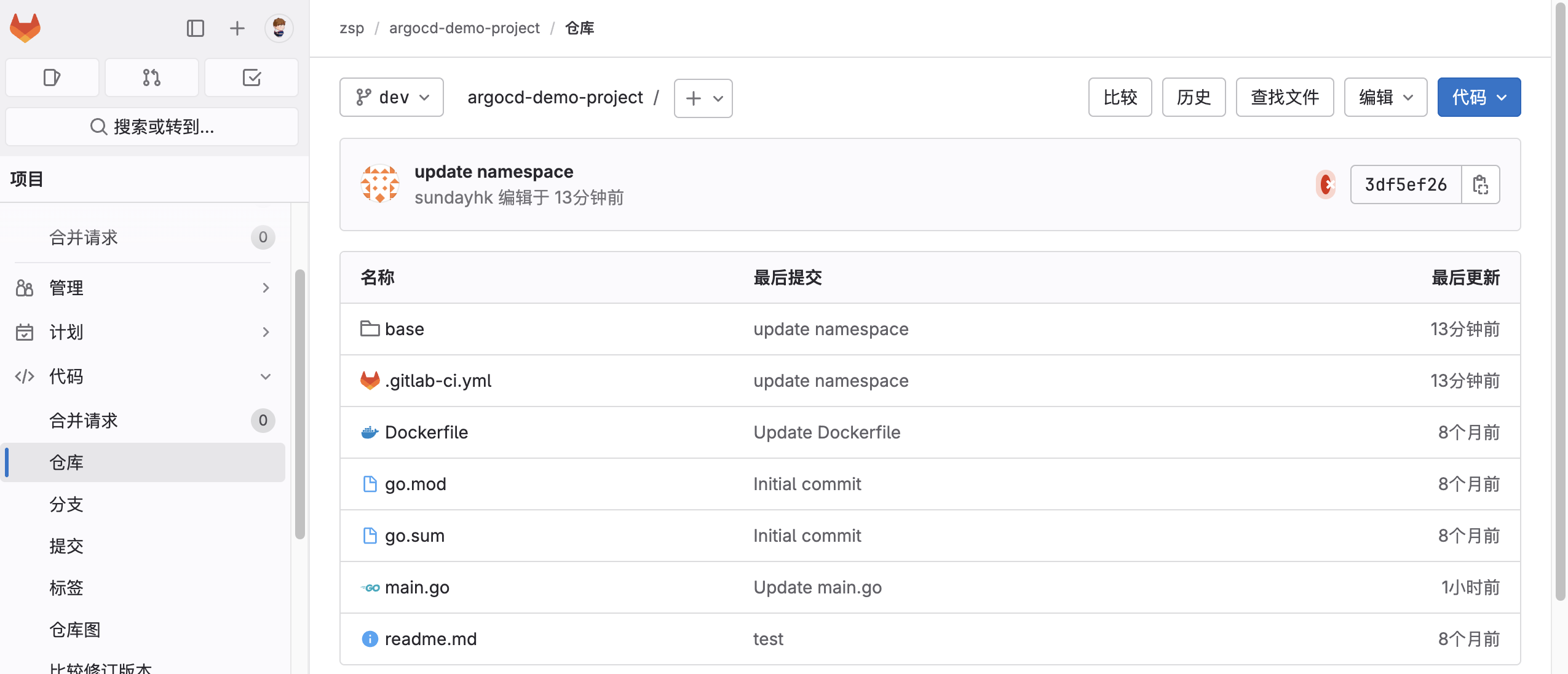

分支选择 .gitlab-ci.yml 的dev分支 路径: base

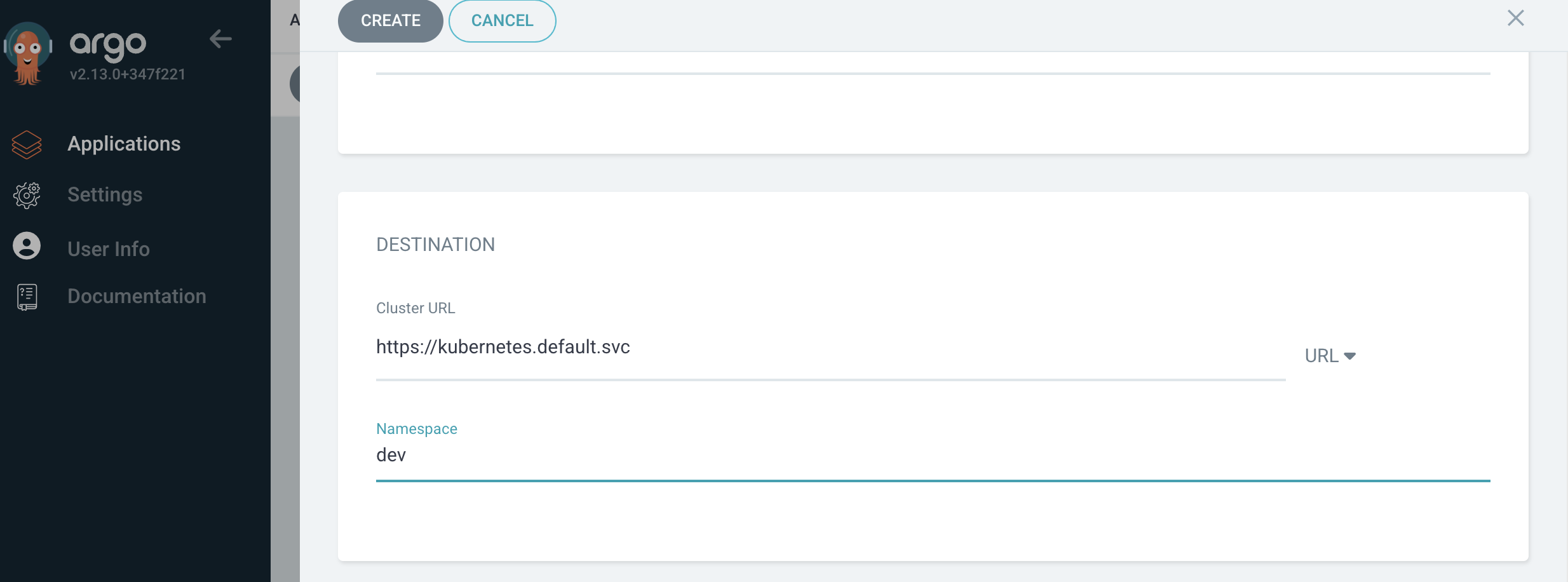

集群和名称空间

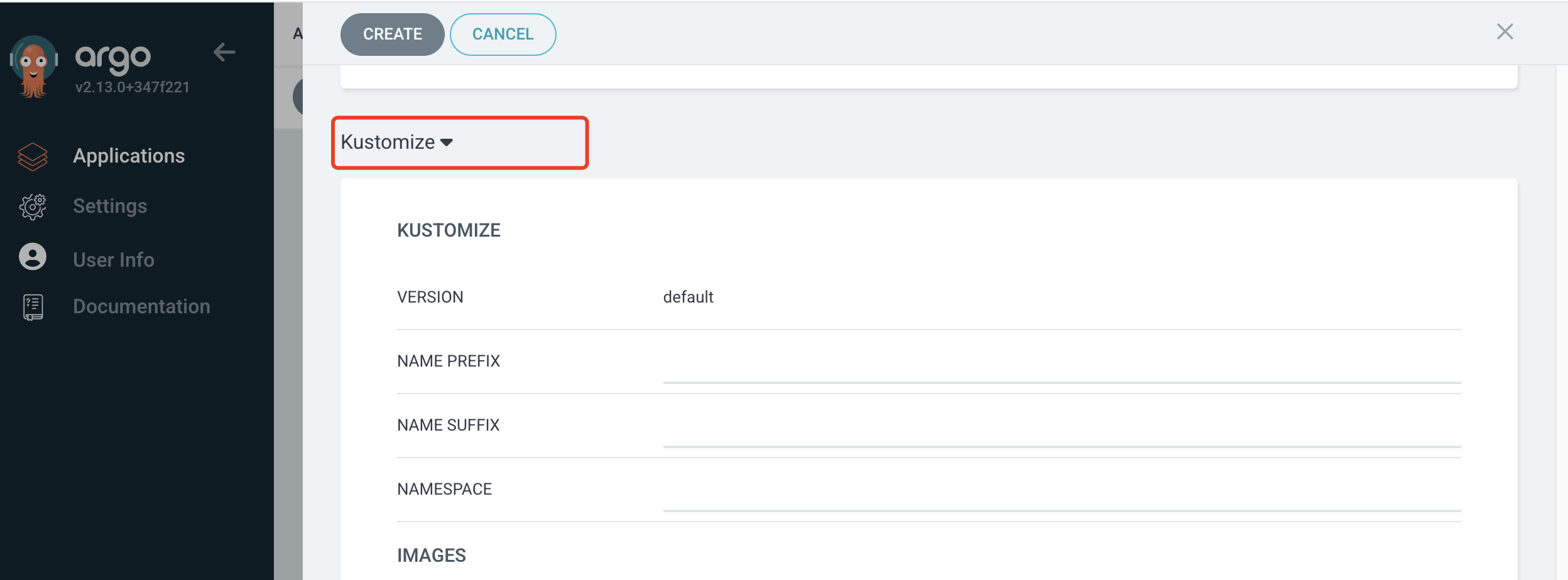

使用KUSTOMIZE

手动模式，这里需要点击下同步

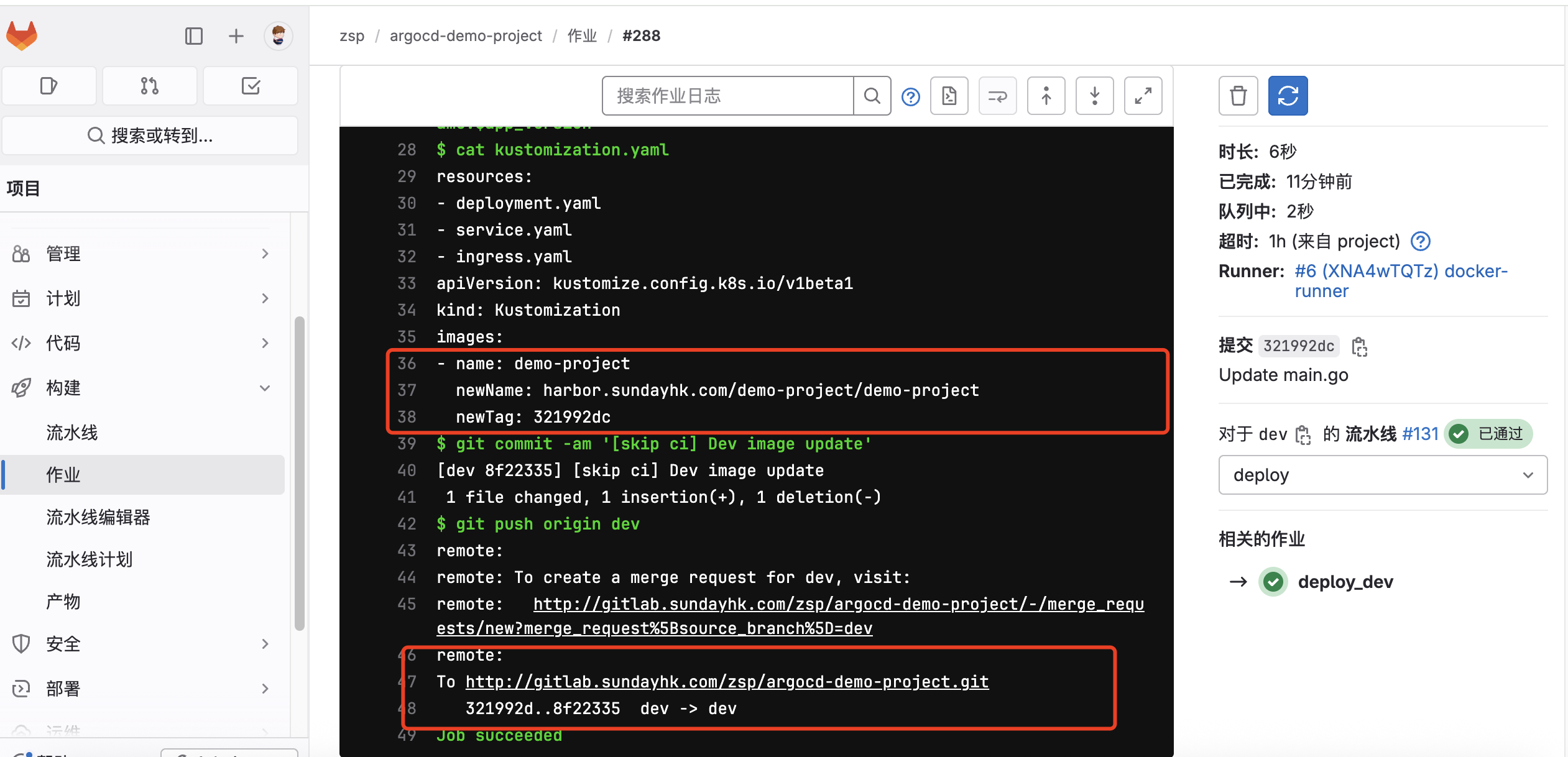

dev分支 提交代码后会触发gitlab-ci

webhook 触发成功

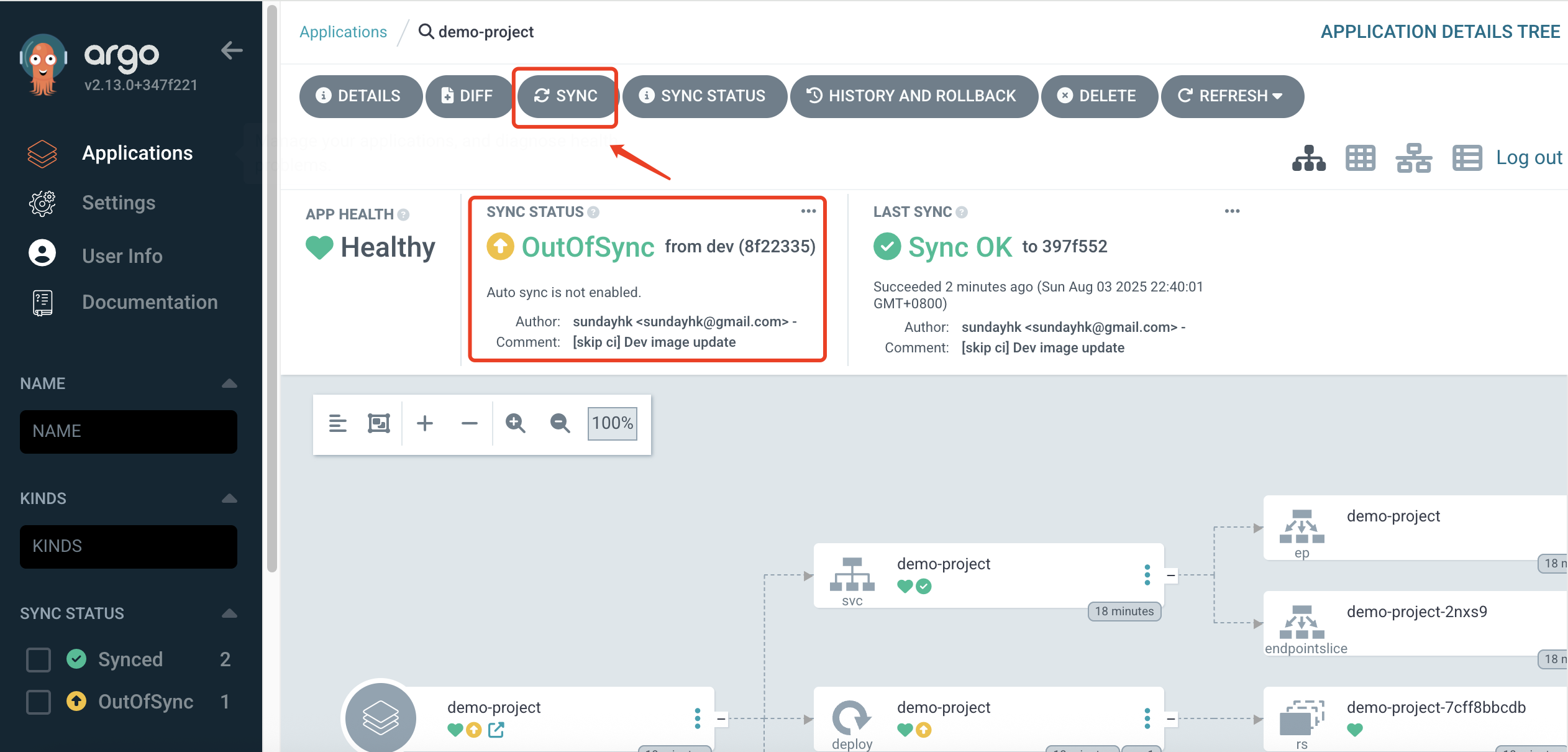

Argocd dashboard 等待3分钟后 可以到已经新版本信息，显示 OutOfSync 不同步

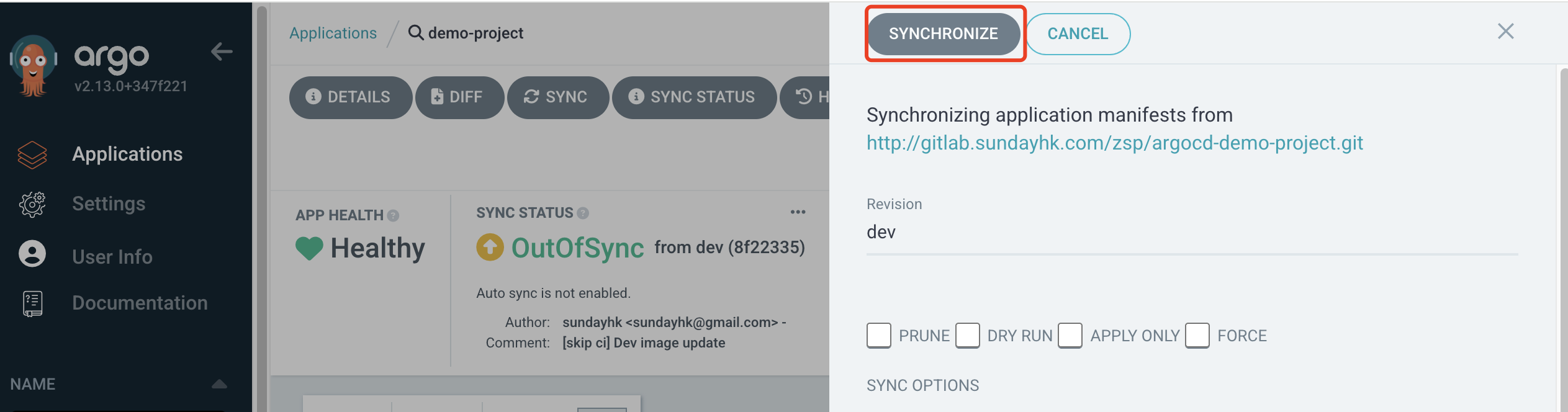

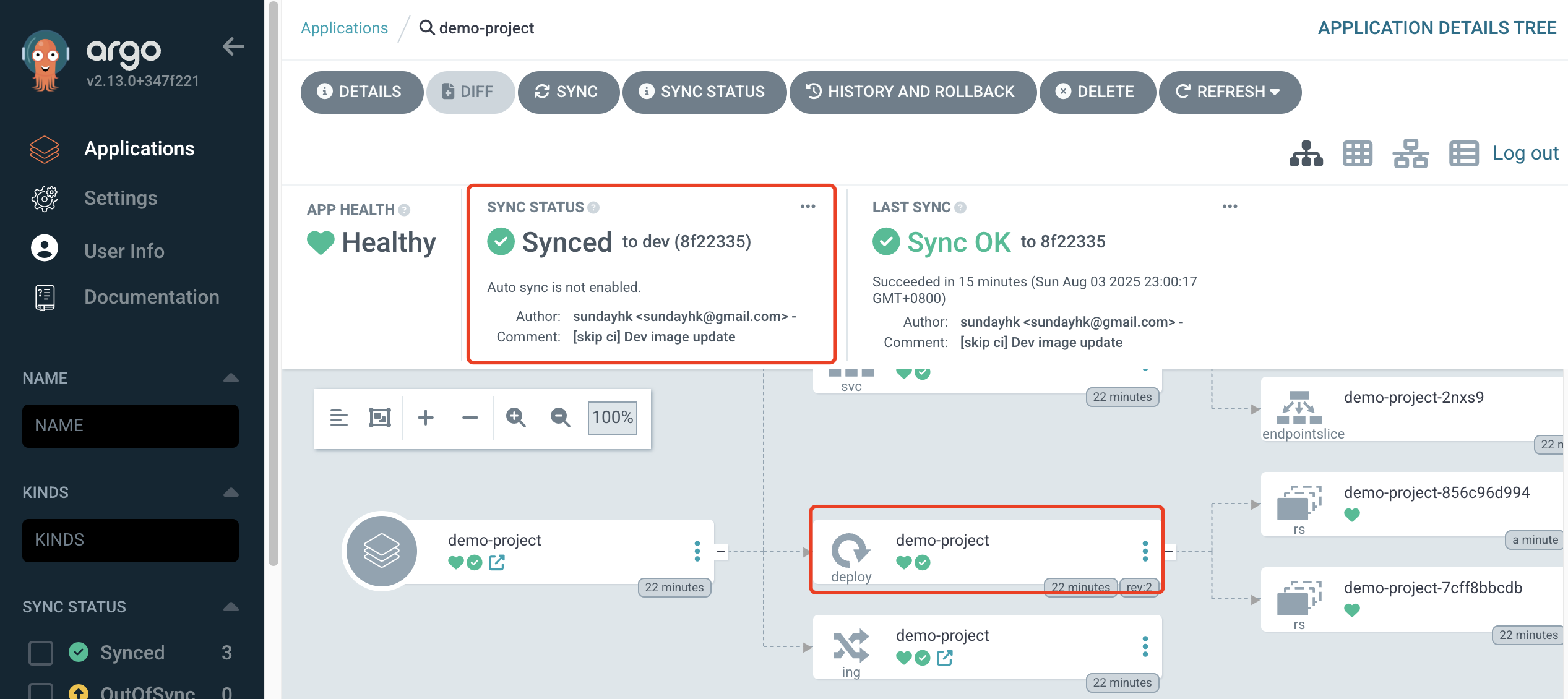

因为之前配置的是手动同步，所以Argocd不会自动同步，需要手动点击SYNC

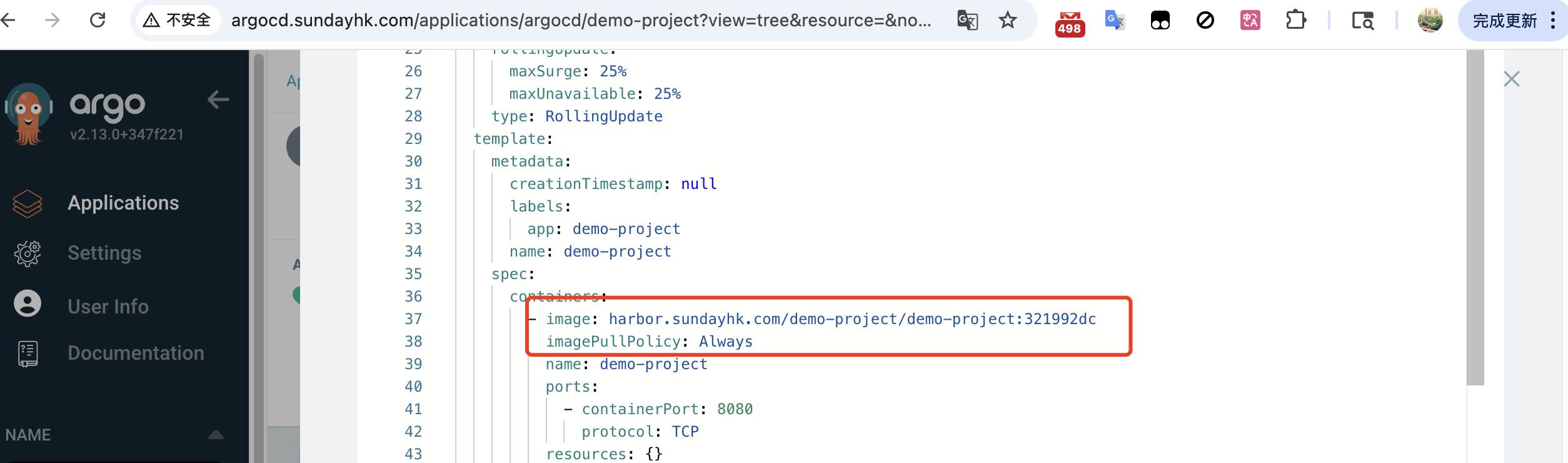

root@k8s-master01:~# kubectl get deployment -n dev -o jsonpath="{.items[*].spec.template.spec.containers[0].image}"
root@k8s-master01:~# kubectl get deployment -n dev -o yaml | grep image:
        - image: harbor.sundayhk.com/demo-project/demo-project:321992dc

解析域名host为ingress ip

root@k8s-master01:~# kubectl get pod -n ingress-nginx -owide | grep ingress
ingress-nginx-controller-b5xxz   1/1     Running   2 (7h38m ago)   268d   192.168.77.141   k8s-master01   <none>           <none>

Mac:~ zsp$ cat /etc/hosts | grep demo-project
192.168.77.141 demo-project.sundayhk.com

Mac:~ zsp$ curl demo-project.sundayhk.com
{"message":"Hello, Demo!"}

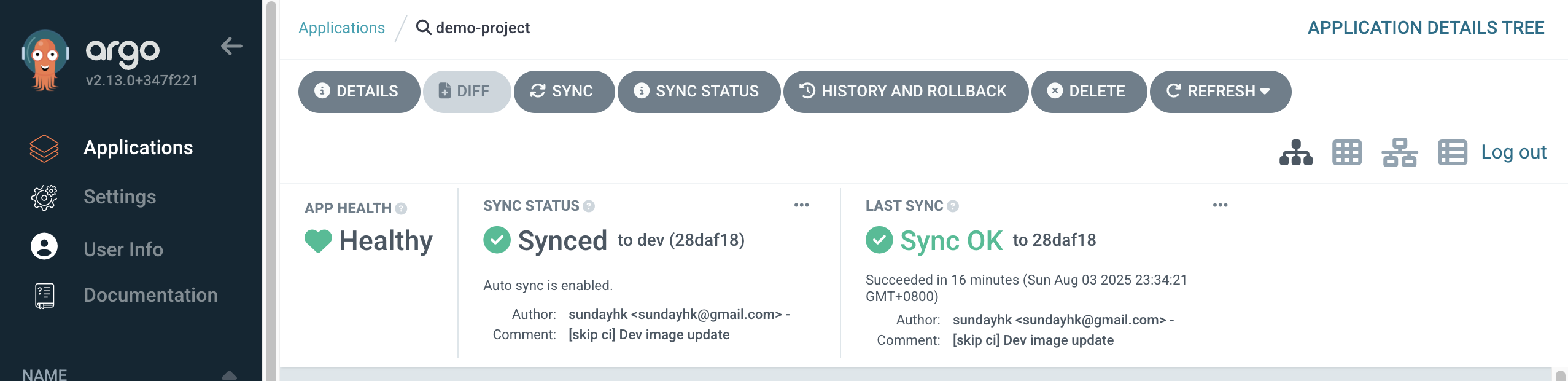

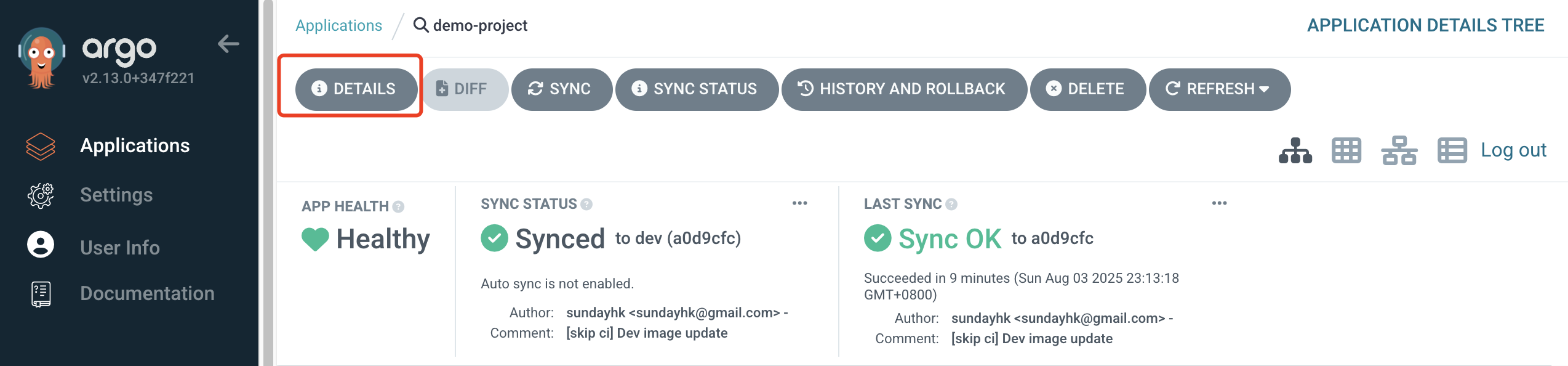

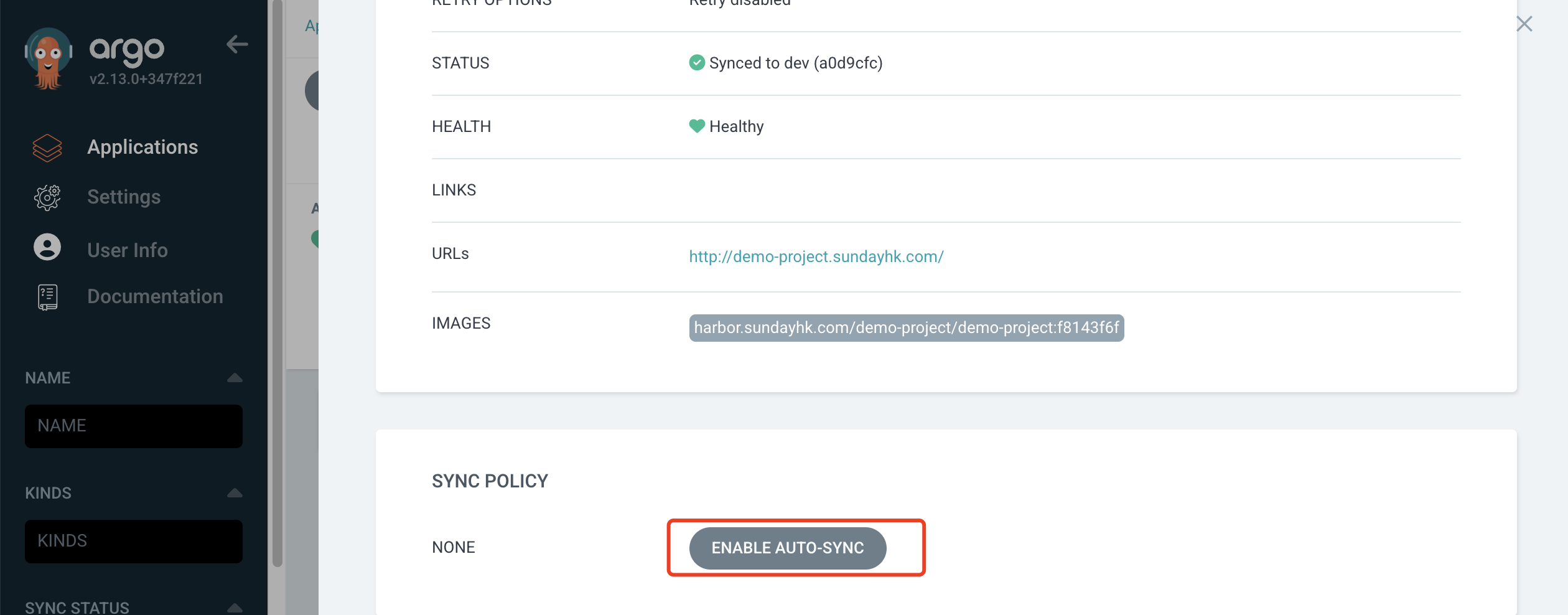

调整自动同步

也可以再次 配置为自动同步

再次提交代码 间隔3分钟就会自动同步

root@k8s-master01:~# kubectl get deployment demo-project -n dev -o yaml | grep image:
      - image: harbor.sundayhk.com/demo-project/demo-project:dc3894b1

配置Webhook更新

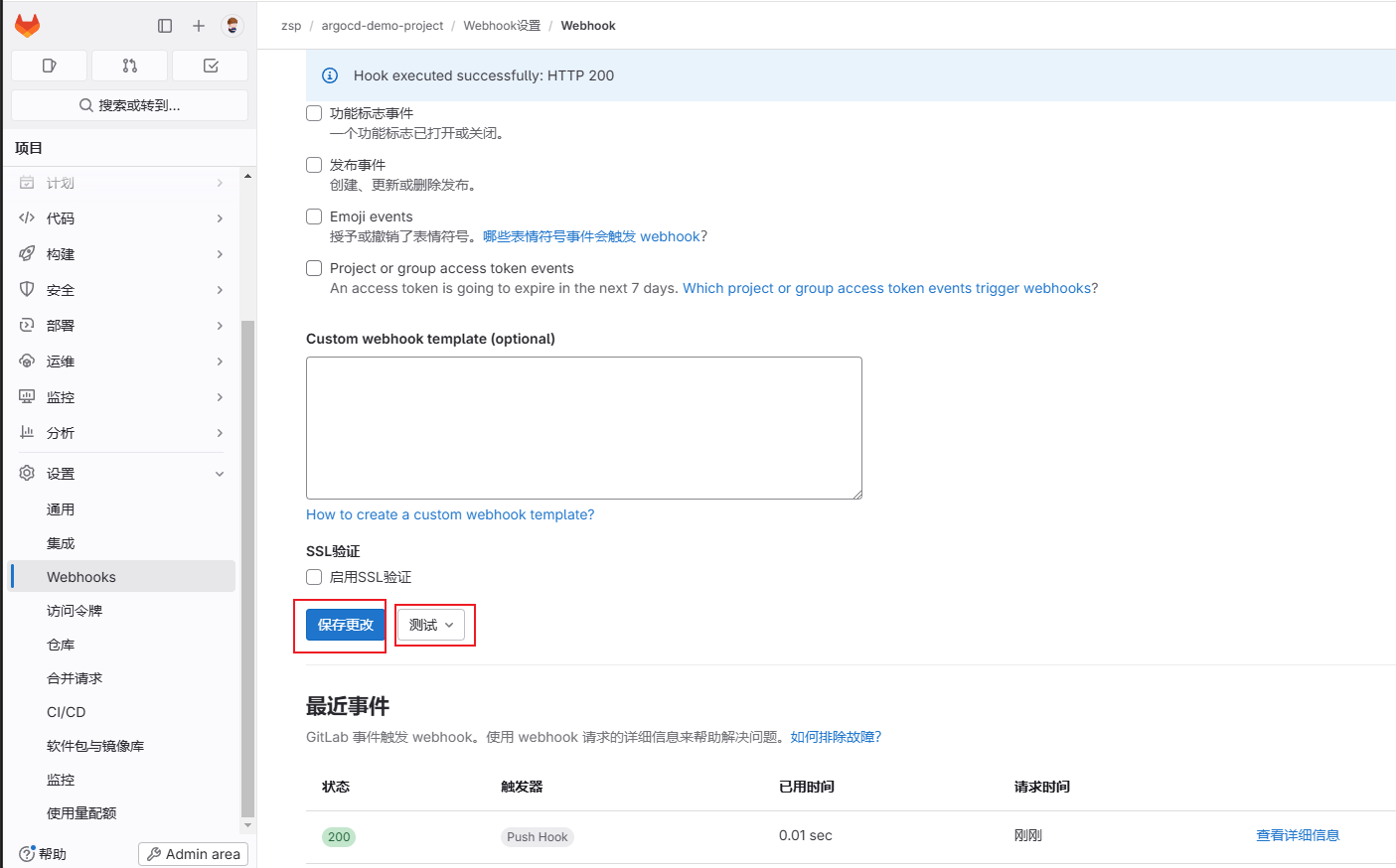

配置Gitlab 项目webhook
argocd 自动同步 默认间隔3分钟，这里配置代码推送时触发argocd同步

这里会触发两次 后续可以调整为 构建完成才触发
第一次：开发人员提交代码Push 触发一次

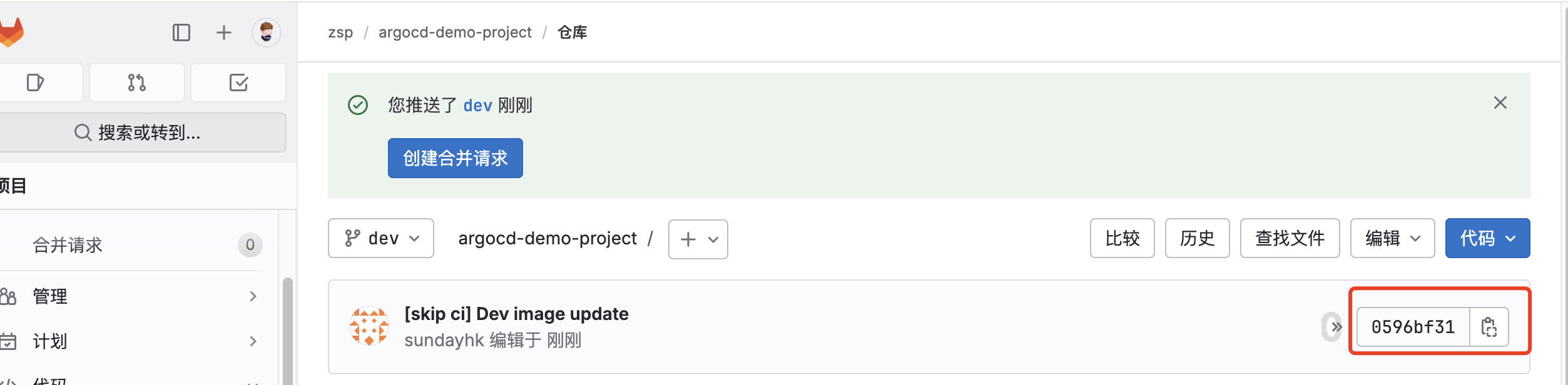

第二次：gitlab-ci.yml 操作 kustomize 提交 也会触发一次

root@k8s-master01:~# kubectl edit secret argocd-secret -n argocd

apiVersion: v1
data:
  admin.password: JDJhJDEwJHovRG9jYnJmRFA1UVVMcDdrNnZVVk85d3RGc3JYVFIwaFhNMk5DWGU2WTVBeG1PeDdpYklh
  admin.passwordMtime: MjAyNC0xMS0yNVQwNTo1NToxNVo=
  server.secretkey: dG1ybnB4NjNJNVR0NEMyb0t3WnlEU1V2TTR1bVd2eENsMlVEVGlBTkJhbz0=
stringData:
  webhook.gitlab.secret: argocdgitlab789

注：保存后 base64加密

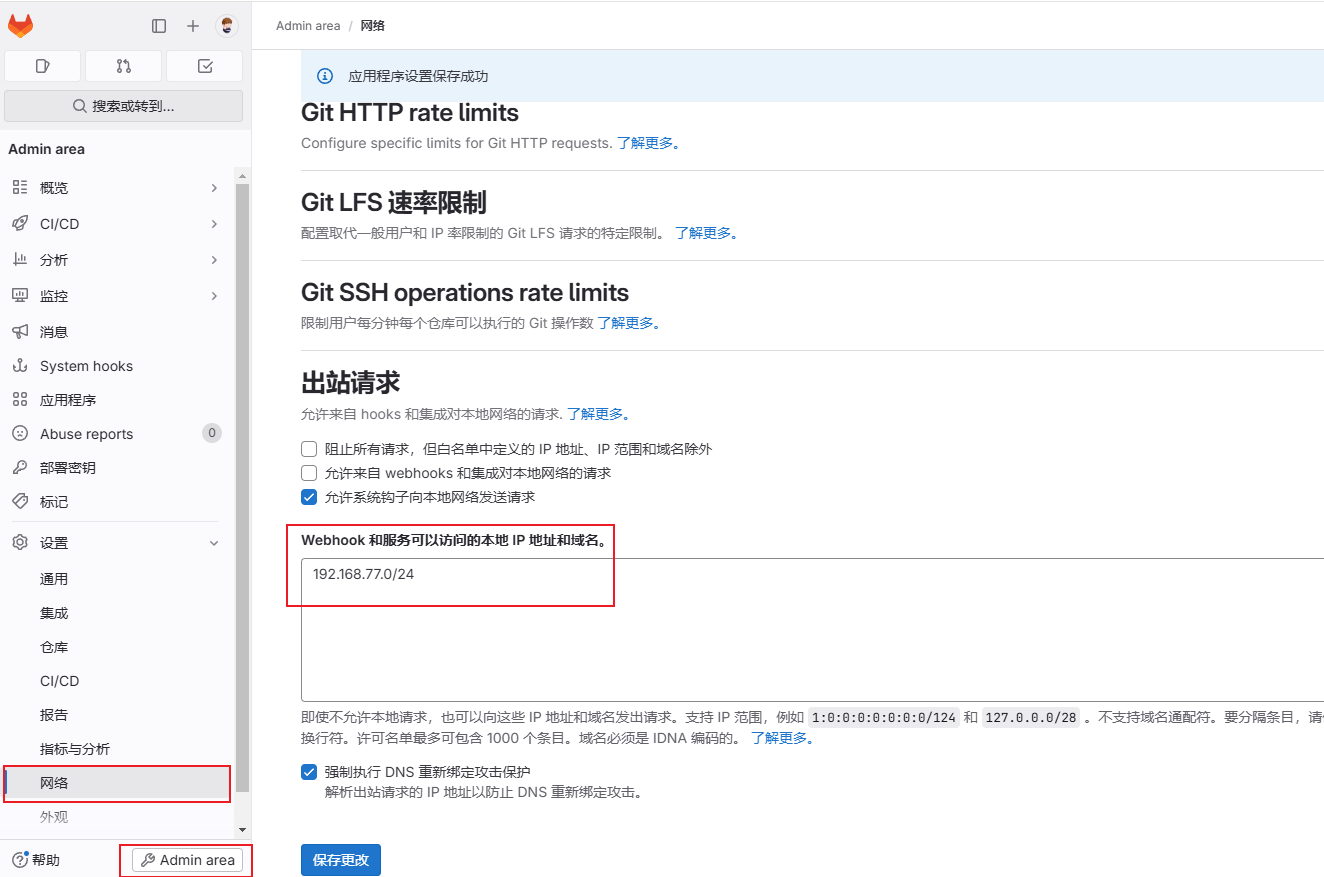

配置出站IP段 即argocd.sundayhk.com 对应的IP或IP段

Hook execution failed: URL is blocked: Requests to the local network are not allowed

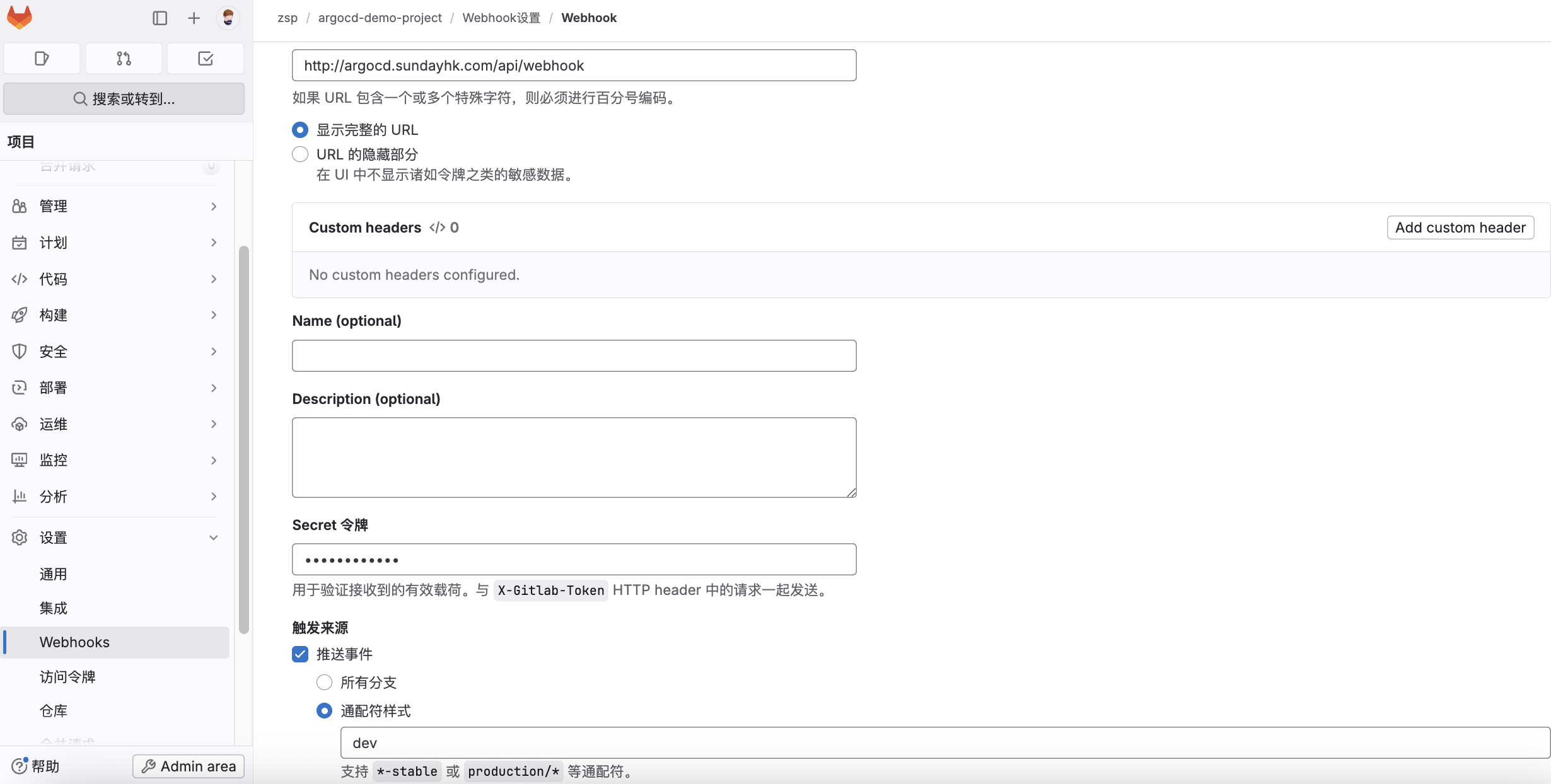

URL: http://argocd.sundayhk.com/api/webhook

Secret令牌 填入 argocdgitlab789

若遇上认证随机成功，请重启下服务
https://github.com/argoproj/argo-cd/issues/15291

kubectl -n argocd deployment rollout restart argocd-server

可以看到

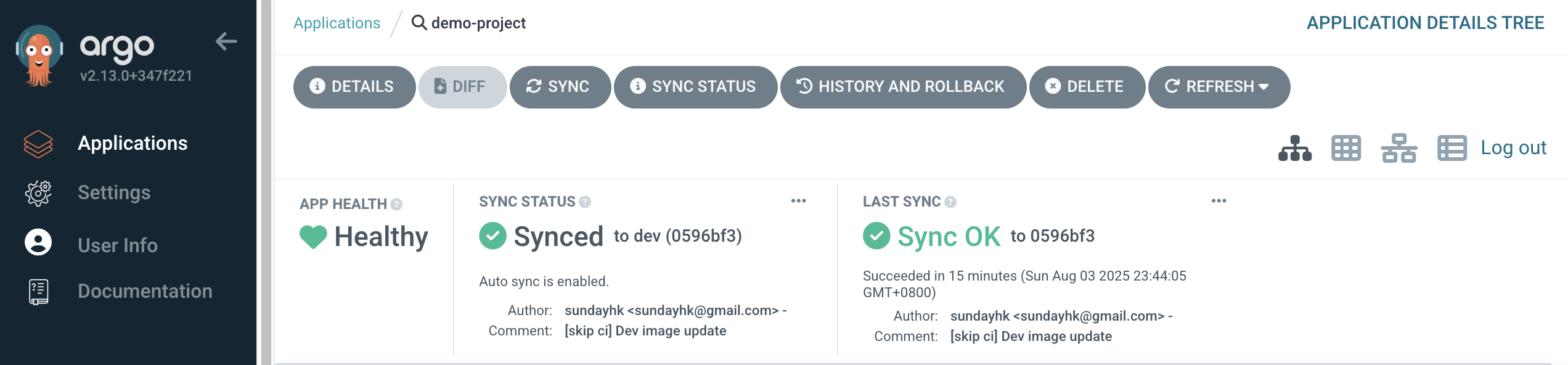

提交代码会触发一次自动同步

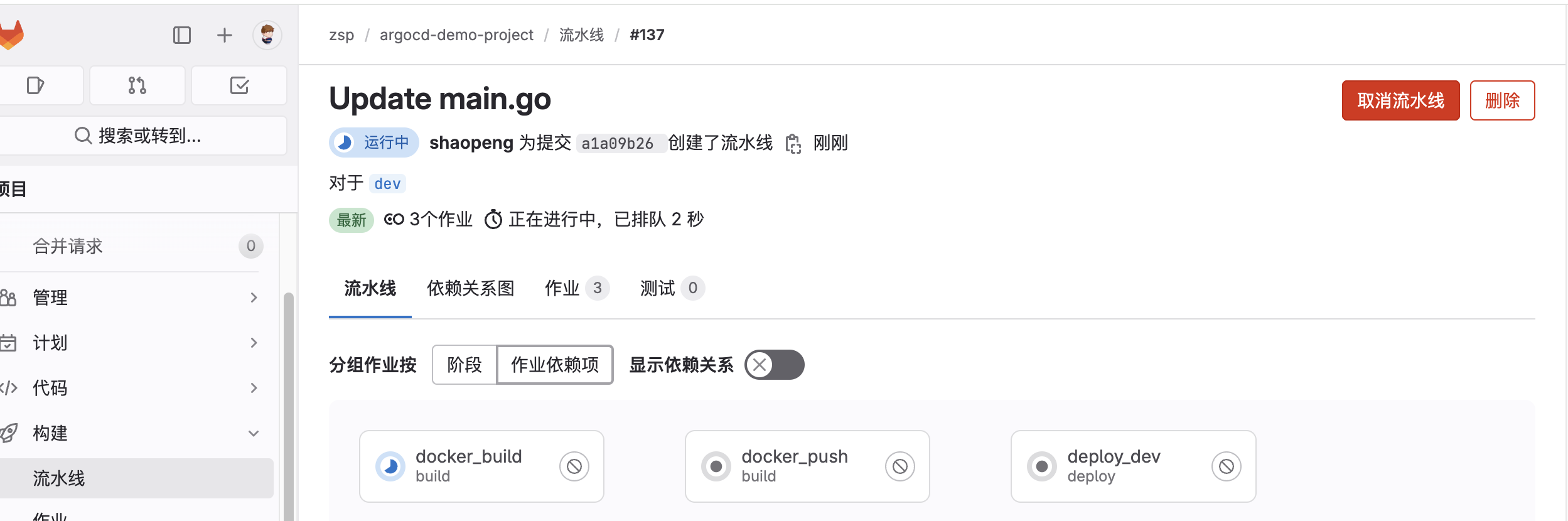

下面还在构建中

构建完成时触发一次自动同步
