环境

MySQL 5.7
Loki 3.5.3
Promtail 3.5.3

检索方式

MySQL 5.7 日志不支持JSON格式，原日志格式不利于检索，若不经处理，则每次检索都要正则匹配，麻烦且耗性能。

下面有两种方式可以实现：

• 提取指定字段做标签，通过标签检索，这种适用保留原日志格式
• 提取所有字段转存储为JSON日志

原格式提取指定字段做标签

注：标签不宜过多，loki标签限制最多15个，一般控制在3-5个，同时应该避免高基数标签（如IP、用户ID、时间戳），这些会导致性能问题。

正则测试

下面是Percona MySQL 慢日志， 不同MySQL版本格式会有差异。

# Time: 2025-07-30T15:11:02.141824+08:00
# User@Host: sunday_mall[sunday_mall] @  [192.168.1.42]  Id: 338614801
# Schema: sunday_mall  Last_errno: 0  Killed: 0
# Query_time: 14.194599  Lock_time: 0.000029  Rows_sent: 1  Rows_examined: 5868820  Rows_affected: 0
# Bytes_sent: 264  Tmp_tables: 0  Tmp_disk_tables: 0  Tmp_table_sizes: 0
# InnoDB_trx_id: 0
# QC_Hit: No  Full_scan: No  Full_join: No  Tmp_table: No  Tmp_table_on_disk: No
# Filesort: No  Filesort_on_disk: No  Merge_passes: 0
#   InnoDB_IO_r_ops: 0  InnoDB_IO_r_bytes: 0  InnoDB_IO_r_wait: 0.000000
#   InnoDB_rec_lock_wait: 0.000000  InnoDB_queue_wait: 0.000000
#   InnoDB_pages_distinct: 8191
# Log_slow_rate_type: query  Log_slow_rate_limit: 100
SET timestamp=1753858862;
SELECT ope.order_id,max(ope.id) as max_id,ord.platform_shop_id,count(*) as count from mall_order_operate as ope left join mall_order as ord on ope.order_id = ord.id where ope.user_id != '-1' and ope.deleted_at is null and ope.created_at <= '2025-07-30 15:00:34' and ope.created_at > '2025-07-30 14:54:34' and ope.end_status = 4 and ope.start_status = 2 and ord.platform_shop_id = 27  and ope.id > if(ord.platform_shop_id = 27, 10404807, 0)  order by ope.id desc;

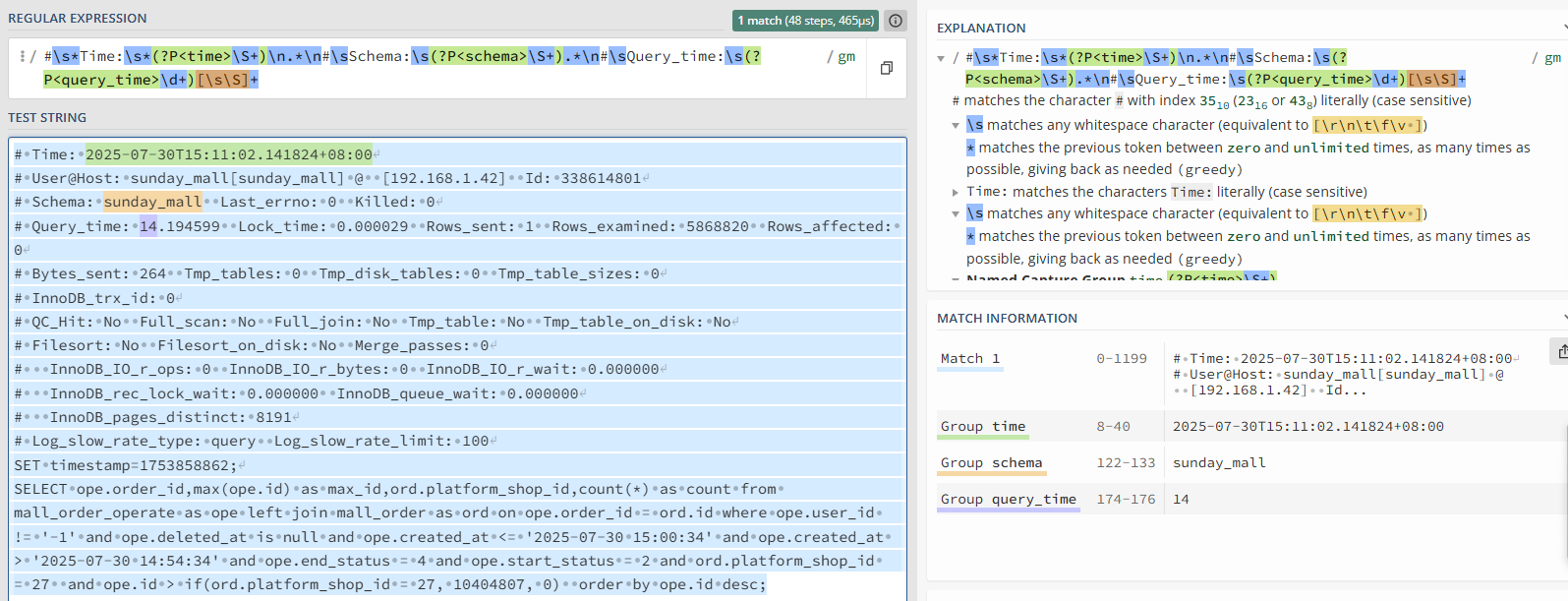

在线测试正则表达式 https://regex101.com/

下面正则表达式 主要提取time、schema、query_time

'#\s*Time:\s*(?P<time>\S+)\n.*\n#\sSchema:\s(?P<schema>\S+).*\n#\sQuery_time:\s(?P<query_time>\d+)[\s\S]+'

这里的query_time使用\d提取为整数，忽略毫秒，避免loki标签高基数问题

正则简单解释
* 是一个量词，表示零次或多次
+ 是一个量词，表示一次或多次
.*：匹配零个或多个任意字符（除了换行符）
\s*: 匹配零个或多个空白字符（包括空格、制表符、换行符等）
\S+：匹配的是一个或多个非空白字符
(?P<schema>\S+)：命名捕获组，名为schema，提取\S+匹配到的结果，通过schema来访问捕获到的内容。
[\s\S]+：匹配一个或多个任何字符（包括空白字符和非空白字符，即所有字符），主要匹配多行数据

配置文件

vim /etc/promtail/config.yml

limits_config:
  readline_rate: 2048    # 默认10000
  readline_burst: 4096   # 默认10000

scrape_configs:
- job_name: mysql_slow
  static_configs:
    - labels:
        instance: db91
        #project_name: sunday_mall
        job: mysql_slow_log
        __path__: /data/logs/mysql/slow_*.log
  pipeline_stages:
    - multiline:
        firstline: '^#\sTime:.'   # 正则多行合并
        max_lines: 300
        max_wait_time: 3s

    - match:
        selector: '{job="mysql_slow_log"}'
        stages:
        # 提取time schema query_time字段
          - regex:
              expression: '#\s*Time:\s*(?P<time>\S+)\n.*\n#\sSchema:\s(?P<schema>\S+).*\n#\sQuery_time:\s(?P<query_time>\d+)[\s\S]+'

          - labels:
              schema:
              query_time:

          - timestamp: # 调整解析时间为time字段，而非Promtail接收到日志的时间
              source: time
              format: RFC3339

检查语法及前台启动测试

promtail -config.file=/etc/promtail/config.yml -check-syntax
promtail -config.file=/etc/promtail/config.yml

标签检索及正则检索

Fields标签 多了schema和query_time

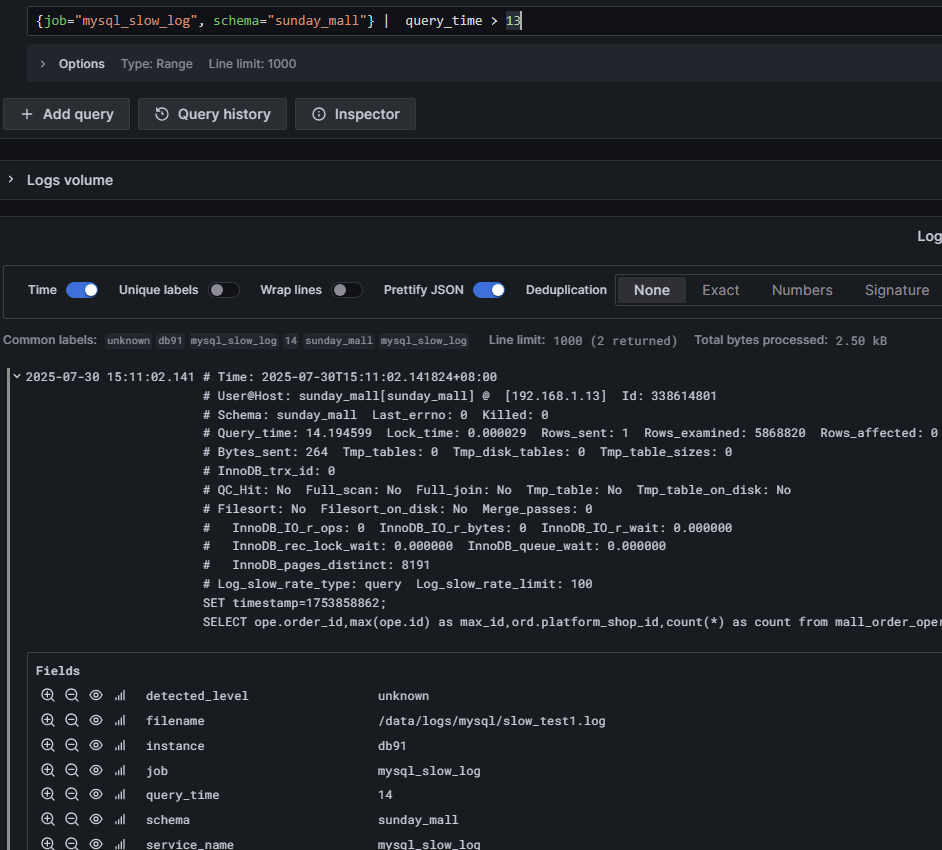

标签查询

{job="mysql_slow_log", schema="sunday_mall"} |  query_time > 13
{job="mysql_slow_log" } |  schema="sunday_mall" | query_time > 13

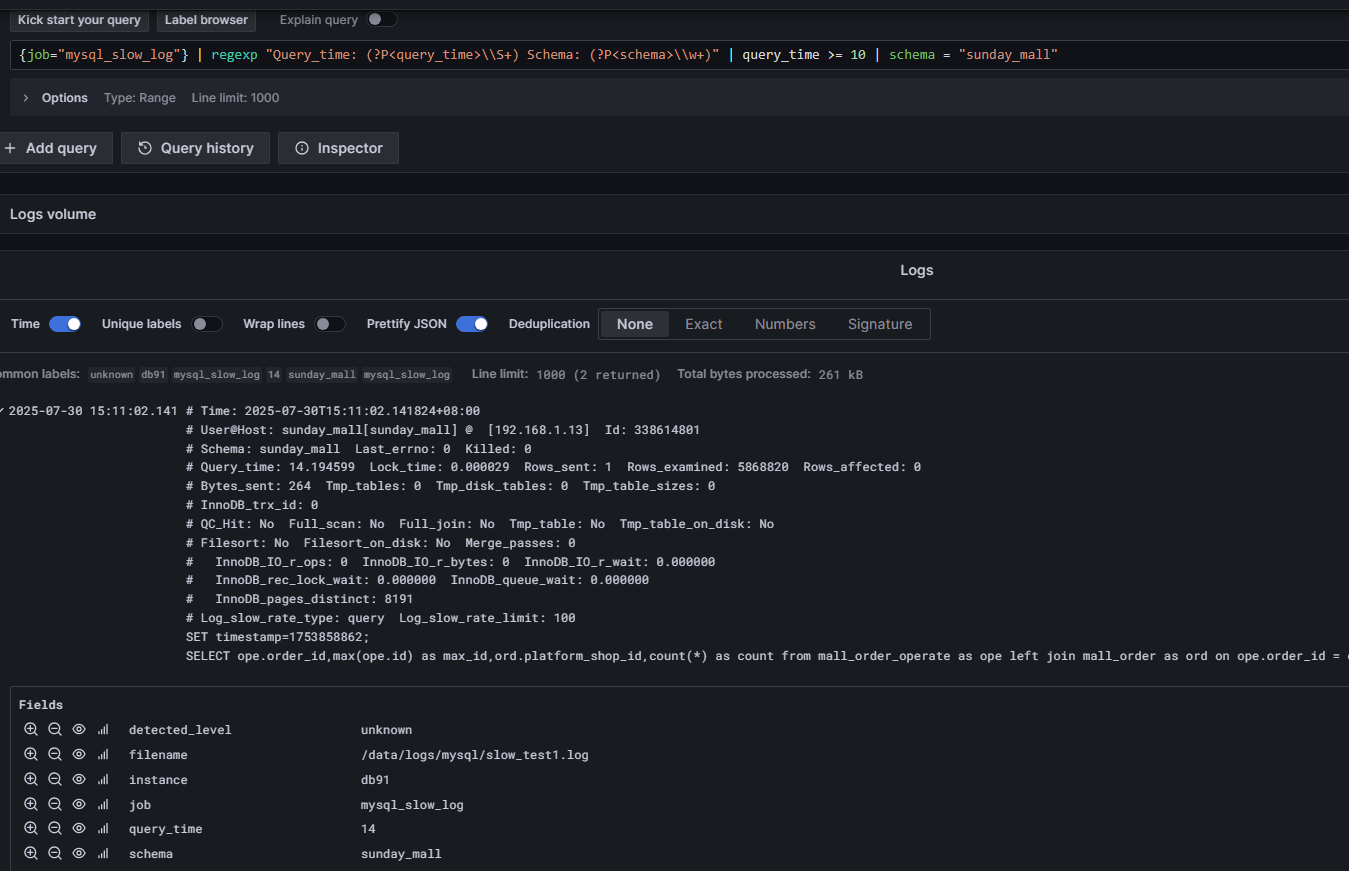

正则查询（不通过标签），\注意转义

{job="mysql_slow_log"} | regexp "Query_time: (?P<query_time>\\S+) Schema: (?P<schema>\\w+)" | query_time >= 10 | schema = "sunday_mall"

提取所有字段转储为JSON

正则测试

用ip和localhost连接的日志格式不同

# User@Host: sunday_mall[sunday_mall] @  [192.168.1.42]  Id: 338614801
或
# User@Host: backup[backup] @ localhost []  Id: 381613365

下面正则只匹配[]中地址，若为空，则promtail 设置默认值为localhost

#\s+User@Host:\s+\w+\[(?P<user>\S+)\]\s+@\s+[\w\s]*\[(?P<host>\S*)\]\s+Id:\s+(?P<connection_id>\d+)\n

在线测试正则表达式 https://regex101.com/

^#\s+Time:\s+(?P<time>\S+)\n#\s+User@Host:\s+\w+\[(?P<user>\S+)\]\s+@\s+[\w\s]*\[(?P<host>\S*)\]\s+Id:\s+(?P<connection_id>\d+)\n#\s+Schema:\s(?P<schema>\S+)\s+Last_errno:\s+(?P<last_errno>\d+)\s+Killed:\s+(?P<killed>\d+)\n#\s+Query_time:\s+(?P<query_time>\S+)\s+Lock_time:\s+(?P<lock_time>\S+)\s+Rows_sent:\s+(?P<rows_sent>\d+)\s+Rows_examined:\s+(?P<rows_examined>\d+)\s+Rows_affected:\s+(?P<rows_affected>\d+)\n#\s+Bytes_sent:\s+(?P<bytes_sent>\d+)\s+Tmp_tables:\s+(?P<tmp_tables>\d+)\s+Tmp_disk_tables:\s+(?P<tmp_disk_tables>\d+)\s+Tmp_table_sizes:\s(?P<tmp_table_sizes>\d+)\n#\s+InnoDB_trx_id:\s(?P<innodb_trx>\d+)\n#\s+QC_Hit:\s+(?P<qc_hit>\S+)\s+Full_scan:\s(?P<full_scan>\S+)\s+Full_join:\s+(?P<full_join>\S+)\s+Tmp_table:\s(?P<tmp_table>\S+)\s+Tmp_table_on_disk:\s+(?P<tmp_table_on_disk>\S+)\n#\s+Filesort:\s+(?P<filesort>\S+)\s+Filesort_on_disk:\s+(?P<filesort_on_disk>\S+)\s+Merge_passes:\s+(?P<merge_passes>\d+)\n#\s+InnoDB_IO_r_ops:\s+(?P<innodb_io_r_ops>\d+)\s+InnoDB_IO_r_bytes:\s+(?P<innodb_io_r_bytes>\S+)\s+InnoDB_IO_r_wait:\s+(?P<innodb_io_r_wait>\S+)\n#\s+InnoDB_rec_lock_wait:\s+(?P<innodb_rec_lock_wait>\S+)\s+InnoDB_queue_wait:\s+(?P<innodb_queue_wait>\S+)\n#\s+InnoDB_pages_distinct:\s+(?P<innodb_pages_distinct>\S+)\n#\s+Log_slow_rate_type:\s+(?P<log_slow_rate_type>\S+)\s+Log_slow_rate_limit:\s+(?P<log_slow_rate_limit>\d+)\nSET\s+timestamp=(?P<timestamp>\d+);\n(?P<query>[\s\S]*)'

配置文件

server:
  http_listen_port: 9080
  grpc_listen_port: 0

positions:
  filename: /tmp/positions.yaml

clients:
- url: http://192.168.1.54:3100/loki/api/v1/push

limits_config:
  readline_rate: 10000    # 每秒每文件最大行数
  readline_burst: 10000

scrape_configs:
- job_name: mysql_slow
  static_configs:
    - labels:
        instance: db91
        job: mysql_slow_log
        __path__: /data/logs/mysql/slow_*.log
  pipeline_stages:
    # 多行处理：识别每条日志的起始
    - multiline:
        firstline: '^#\sTime:.'
        max_lines: 1000
        max_wait_time: 3s

    - match:
        selector: '{job="mysql_slow_log"}'
        stages:
          - regex:
              #expression: '#\s*Time:\s*(?P<time>\S+)\n.*\n#\sSchema:\s(?P<schema>\S+).*\n#\sQuery_time:\s(?P<query_time>\d+)[\s\S]+'
               expression: '^#\s+Time:\s+(?P<time>\S+)\n#\s+User@Host:\s+\w+\[(?P<user>\S+)\]\s+@\s+[\w\s]*\[(?P<host>\S*)\]\s+Id:\s+(?P<connection_id>\d+)\n#\s+Schema:\s(?P<schema>\S+)\s+Last_errno:\s+(?P<last_errno>\d+)\s+Killed:\s+(?P<killed>\d+)\n#\s+Query_time:\s+(?P<query_time>\S+)\s+Lock_time:\s+(?P<lock_time>\S+)\s+Rows_sent:\s+(?P<rows_sent>\d+)\s+Rows_examined:\s+(?P<rows_examined>\d+)\s+Rows_affected:\s+(?P<rows_affected>\d+)\n#\s+Bytes_sent:\s+(?P<bytes_sent>\d+)\s+Tmp_tables:\s+(?P<tmp_tables>\d+)\s+Tmp_disk_tables:\s+(?P<tmp_disk_tables>\d+)\s+Tmp_table_sizes:\s(?P<tmp_table_sizes>\d+)\n#\s+InnoDB_trx_id:\s(?P<innodb_trx>\d+)\n#\s+QC_Hit:\s+(?P<qc_hit>\S+)\s+Full_scan:\s(?P<full_scan>\S+)\s+Full_join:\s+(?P<full_join>\S+)\s+Tmp_table:\s(?P<tmp_table>\S+)\s+Tmp_table_on_disk:\s+(?P<tmp_table_on_disk>\S+)\n#\s+Filesort:\s+(?P<filesort>\S+)\s+Filesort_on_disk:\s+(?P<filesort_on_disk>\S+)\s+Merge_passes:\s+(?P<merge_passes>\d+)\n#\s+InnoDB_IO_r_ops:\s+(?P<innodb_io_r_ops>\d+)\s+InnoDB_IO_r_bytes:\s+(?P<innodb_io_r_bytes>\S+)\s+InnoDB_IO_r_wait:\s+(?P<innodb_io_r_wait>\S+)\n#\s+InnoDB_rec_lock_wait:\s+(?P<innodb_rec_lock_wait>\S+)\s+InnoDB_queue_wait:\s+(?P<innodb_queue_wait>\S+)\n#\s+InnoDB_pages_distinct:\s+(?P<innodb_pages_distinct>\S+)\n#\s+Log_slow_rate_type:\s+(?P<log_slow_rate_type>\S+)\s+Log_slow_rate_limit:\s+(?P<log_slow_rate_limit>\d+)\nSET\s+timestamp=(?P<timestamp>\d+);\n(?P<query>[\s\S]*)'

          # 取整
          - regex:
              expression: '(?P<query_time_int>\d+)(\.\d+)?'
              source: query_time

          - labels:
              schema:
              query_time: query_time_int

          - timestamp:
              source: time
              #format: RFC3339
              format: "2006-01-02T15:04:05Z07:00"
              location: "Asia/Shanghai"

          - template:
              source: json_log_message
              template: |
                {
                  "time": "{{ .time }}",
                  "user": "{{ .user }}",
                  "host": "{{ if .host }}{{ .host }}{{ else }}localhost{{ end }}",
                  "connection_id": {{ .connection_id }},
                  "schema": "{{ .schema }}",
                  "last_errno": {{ .last_errno }},
                  "killed": {{ .killed }},
                  "query_time": "{{ .query_time }}",
                  "lock_time": "{{ .lock_time }}",
                  "rows_sent": {{ .rows_sent }},
                  "rows_examined": {{ .rows_examined }},
                  "rows_affected": {{ .rows_affected }},
                  "bytes_sent": {{ .bytes_sent }},
                  "tmp_tables": {{ .tmp_tables }},
                  "tmp_disk_tables": {{ .tmp_disk_tables }},
                  "tmp_table_sizes": {{ .tmp_table_sizes }},
                  "innodb_trx": "{{ .innodb_trx }}",
                  "qc_hit": "{{ .qc_hit }}",
                  "full_scan": "{{ .full_scan }}",
                  "full_join": "{{ .full_join }}",
                  "tmp_table": "{{ .tmp_table }}",
                  "tmp_table_on_disk": "{{ .tmp_table_on_disk }}",
                  "filesort": "{{ .filesort }}",
                  "filesort_on_disk": "{{ .filesort_on_disk }}",
                  "merge_passes": {{ .merge_passes }},
                  "innodb_io_r_ops": {{ .innodb_io_r_ops }},
                  "innodb_io_r_bytes": "{{ .innodb_io_r_bytes }}",
                  "innodb_io_r_wait": "{{ .innodb_io_r_wait }}",
                  "innodb_rec_lock_wait": "{{ .innodb_rec_lock_wait }}",
                  "innodb_queue_wait": "{{ .innodb_queue_wait }}",
                  "innodb_pages_distinct": "{{ .innodb_pages_distinct }}",
                  "log_slow_rate_type": "{{ .log_slow_rate_type }}",
                  "log_slow_rate_limit": {{ .log_slow_rate_limit }},
                  "timestamp": {{ if .timestamp }}"{{ .timestamp }}"{{ else }}null{{ end }},
                  "query": "{{ .query }}"
                }
          - output:
              source: json_log_message

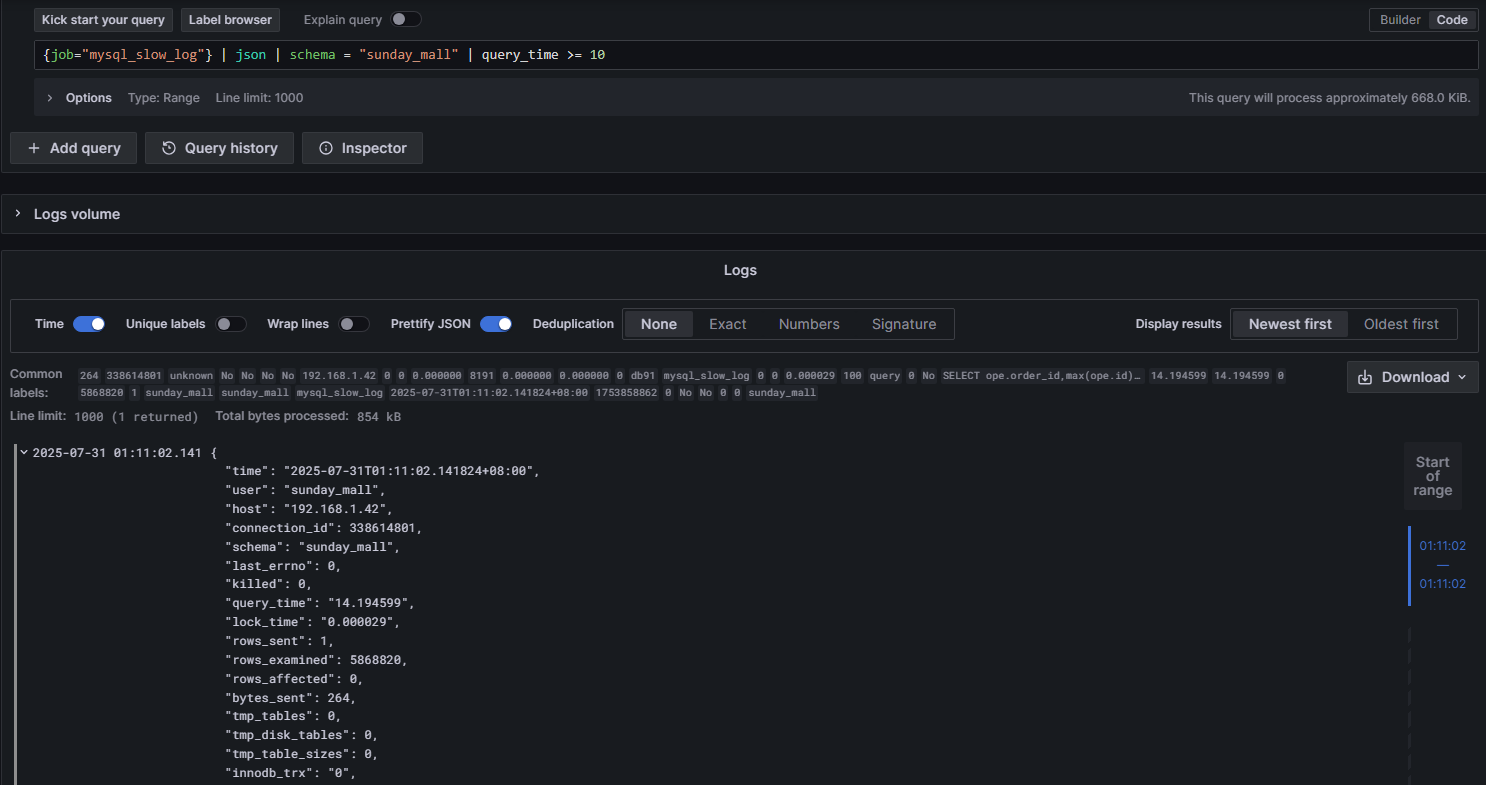

json检索

{job="mysql_slow_log"} |= `` | json | schema = "sunday_mall" | query_time >= 10
