环境

ubuntu 22.04
Harbor 2.13.2

root@arm1-ip-10-0-0-203:~/harbor# lscpu
Architecture:           aarch64
  CPU op-mode(s):       32-bit, 64-bit
  Byte Order:           Little Endian
CPU(s):                 2
  On-line CPU(s) list:  0,1
Vendor ID:              ARM
  Model name:           Neoverse-N1
    Model:              1
    Thread(s) per core: 1
    Core(s) per socket: 2
    Socket(s):          1
    Stepping:           r3p1
    BogoMIPS:           50.00
    Flags:              fp asimd evtstrm aes pmull sha1 sha2 crc32 atomics fphp asimdhp cpuid asimdrdm lrcpc dcpop asimddp ssbs

git clone -b v2.13.2 https://github.com/goharbor/harbor
cd harbor

修改 MakeFile
默认会拉取amd64镜像，这里使用构建方式

sed -i "s#PULL_BASE_FROM_DOCKERHUB=true#PULL_BASE_FROM_DOCKERHUB=false#g" ./Makefile

make/photon/exporter/Dockerfile
调整使用arm64架构

sed -i 's#GOARCH=amd64#GOARCH=arm64#g' make/photon/exporter/Dockerfile

构建离线安装包

root@arm1-ip-10-0-0-203:~/harbor# make package_offline VERSIONTAG=v2.13.2 PKGVERSIONTAG=v2.13.2 UIVERSIONTAG=v2.13.2

compiling and building image for exporter...
[+] Building 136.4s (15/15) FINISHED
 => [internal] load .dockerignore
 => => transferring context: 132B
 => [internal] load build definition from Dockerfile
 => => transferring dockerfile: 799B
 => [internal] load metadata for docker.io/library/golang:1.24.5
 => [internal] load metadata for docker.io/goharbor/harbor-exporter-base:dev
 => CACHED [build 1/4] FROM docker.io/library/golang:1.24.5
 => [internal] load build context
 => => transferring context: 19.58MB
 => [stage-1 1/5] FROM docker.io/goharbor/harbor-exporter-base:dev
 => [build 2/4] COPY src /harbor/src
 => [build 3/4] WORKDIR /harbor/src/cmd/exporter
 => [build 4/4] RUN go build -o /out/harbor_exporter
 => [stage-1 2/5] COPY --from=build /out/harbor_exporter /harbor/harbor_exporter
 => [stage-1 3/5] COPY ./make/photon/exporter/entrypoint.sh ./make/photon/common/install_cert.sh /harbor/
 => [stage-1 4/5] RUN chown -R harbor:harbor /etc/pki/tls/certs     && chown -R harbor:harbor /harbor/     && chmod u+x /harbor/entrypoint.sh     && chmod u+x
 => [stage-1 5/5] WORKDIR /harbor
 => exporting to image
 => => exporting layers
 => => writing image sha256:053632cb497c91fac2a08ff3ac08dce198517522f386dda57945302f1b6ad06c
 => => naming to docker.io/goharbor/harbor-exporter:v2.13.2
Done.
make[1]: Leaving directory '/root/harbor'
packing offline package ...
saving harbor docker image
harbor/harbor.v2.13.2.tar.gz
harbor/prepare
harbor/LICENSE
harbor/install.sh
harbor/common.sh
harbor/harbor.yml.tmpl
Done.

root@arm1-ip-10-0-0-203:~/harbor# ls -l | grep harbor
-rw-r--r--  1 root root 542336081 Aug 21 14:42 harbor-offline-installer-v2.13.2.tgz
root@arm1-ip-10-0-0-203:~/harbor# tar xf harbor-offline-installer-v2.13.2.tgz -C /usr/local/
root@arm1-ip-10-0-0-203:~/harbor# mv harbor-offline-installer-v2.13.2.tgz /usr/local/src/
root@arm1-ip-10-0-0-203:~/harbor# cd /usr/local/harbor
root@arm1-ip-10-0-0-203:/usr/local/harbor# cp harbor.yml.tmpl harbor.yml

root@arm1-ip-10-0-0-203:/usr/local/harbor# vim harbor.yml

# 域名
hostname: harbor.sundayhk.com

# http related config
http:
  # port for http, default is 80. If https enabled, this port will redirect to https port
  port: 80

# 注释，不启用https
#https:
#  # https port for harbor, default is 443
#  port: 443
#  # The path of cert and key files for nginx
#  certificate: /your/certificate/path
#  private_key: /your/private/key/path
#  # enable strong ssl ciphers (default: false)
#  # strong_ssl_ciphers: false

# 管理员密码
harbor_admin_password: Harbor12345

# 数据库密码
database:
  password: root123
...
# 数据目录
data_volume: /data/harbor

root@arm1-ip-10-0-0-203:/usr/local/harbor# ./install.sh
...

[Step 5]: starting Harbor ...
[+] Running 10/10
 ✔ Network harbor_harbor        Created                                                                                                                                                                     0.1s
 ✔ Container harbor-log         Started                                                                                                                                                                     0.6s
 ✔ Container registryctl        Started                                                                                                                                                                     1.9s
 ✔ Container redis              Started                                                                                                                                                                     1.8s
 ✔ Container harbor-db          Started                                                                                                                                                                     1.9s
 ✔ Container harbor-portal      Started                                                                                                                                                                     2.1s
 ✔ Container registry           Started                                                                                                                                                                     1.9s
 ✔ Container harbor-core        Started                                                                                                                                                                     2.4s
 ✔ Container harbor-jobservice  Started                                                                                                                                                                     3.1s
 ✔ Container nginx              Started                                                                                                                                                                     3.2s
✔ ----Harbor has been installed and started successfully.----

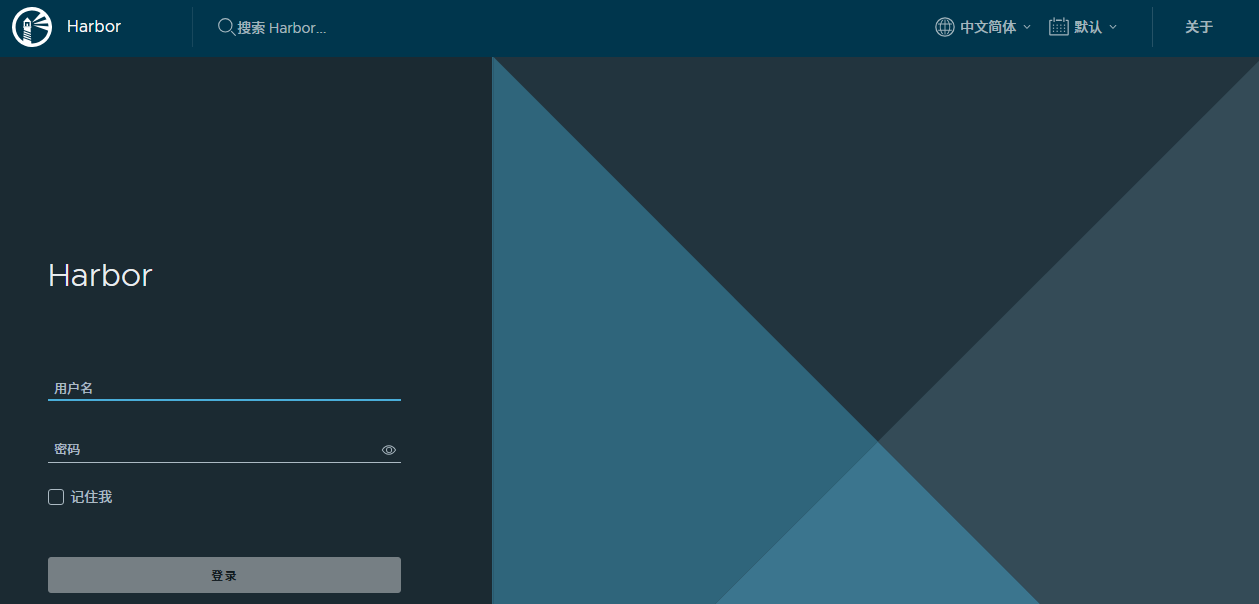

访问服务器IP:80
用户名：admin 密码：Harbor12345
