华为交换机S5720 SNMP Exporter + Prometheus采集

2023-07-20 103 0

s3700-s5700-s6700系列通用

配置交换机SNMP Agent

ssh root@192.168.1.2
system-view
snmp-agent community read cipher sunday_public  # 只读
snmp-agent sys-info contact admin@sundayhk.com # 联系信息
snmp-agent sys-info location guangzhou # 设备位置
snmp-agent sys-info version v2c # 版本
# Ubuntu 22
sudo apt-get install -y unzip build-essential libsnmp-dev
# CentOS 7
sudo yum install -y gcc gcc-g++
net-snmp net-snmp-utils net-snmp-libs net-snmp-devel

测试获取交换机Hostname

$ snmpwalk -v 2c -c sunday_public 192.168.1.2 1.3.6.1.2.1.1.5
iso.3.6.1.2.1.1.5.0 = STRING: "HW1

下载MIB文件

下载华为交换机版本对应MIB文件,如V200R019C10XXXXXX ,若下载不了对应MIB或多款设备不同版本,可以下载高版本MIB,一般高版本会向下兼容低版本,因为之前定义好的OID很少改动,新版本MIB只会增加特性OID

https://support.huawei.com/enterprise/zh/switches/s3700-s5700-s6700-pid-259602657/software

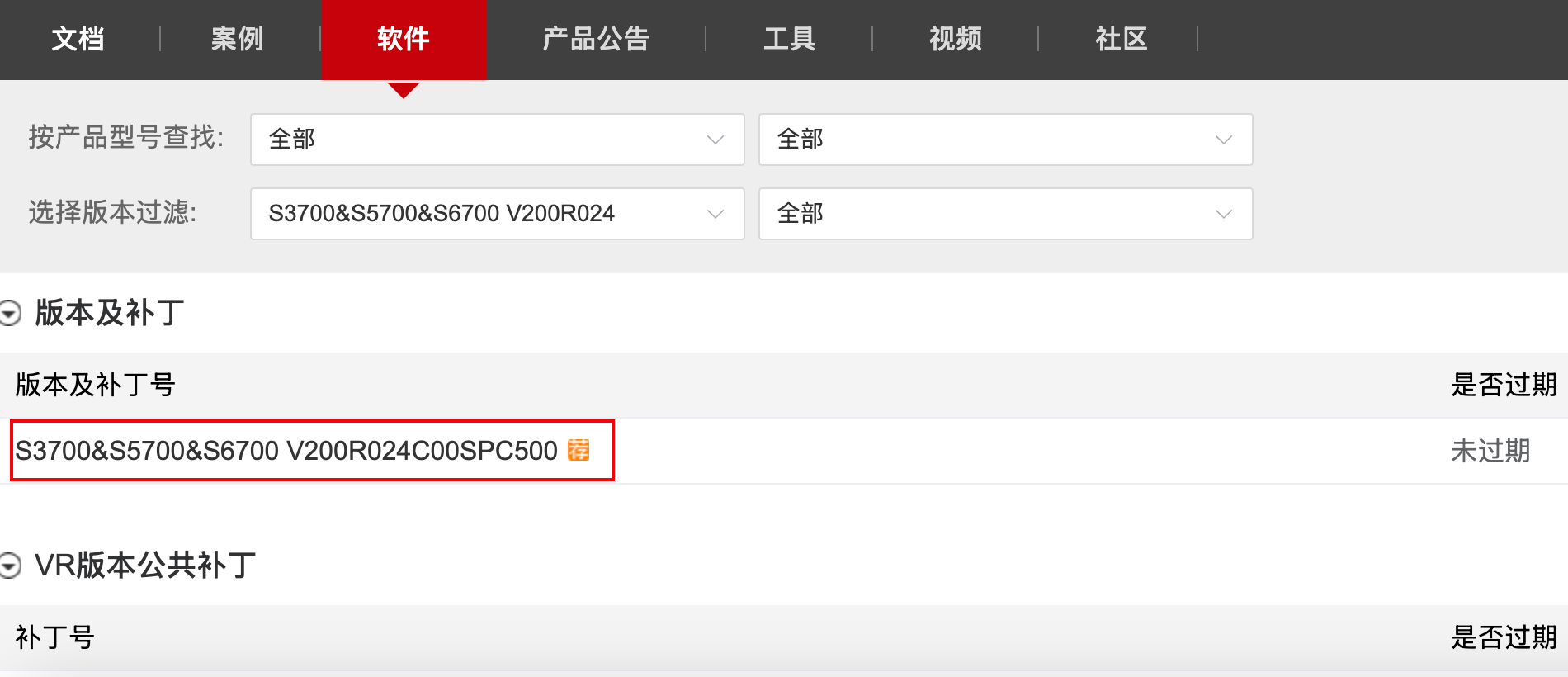

image-20250719223327709

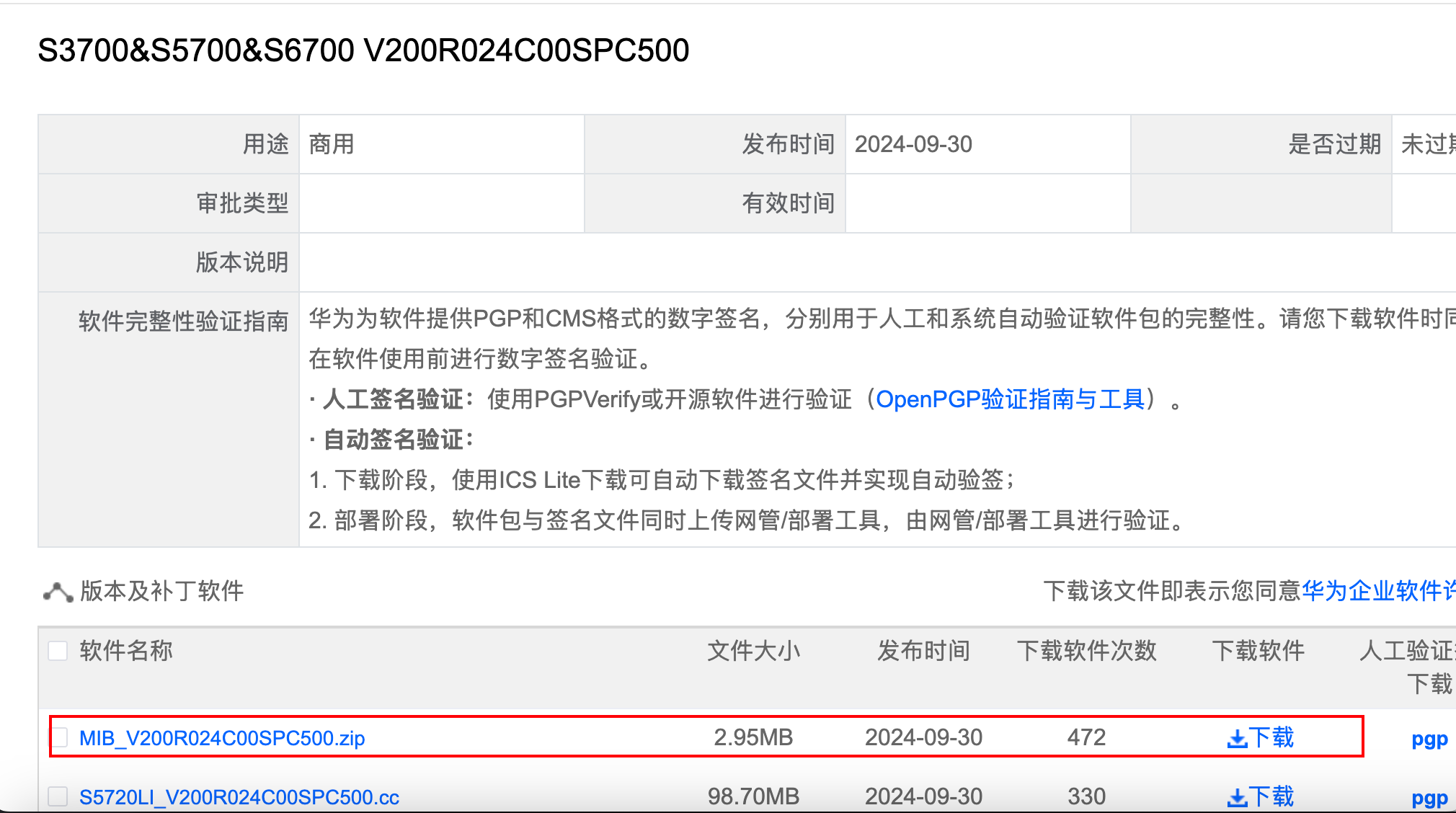

image-20250719223600753

http://oss.sundayhk.com/file/snmp/MIB_V200R024C00SPC500.zip

OID信息查询

华为设备指标 OID 信息查询址:

https://info.support.huawei.com/info-finder/tool/zh/enterprise/mib

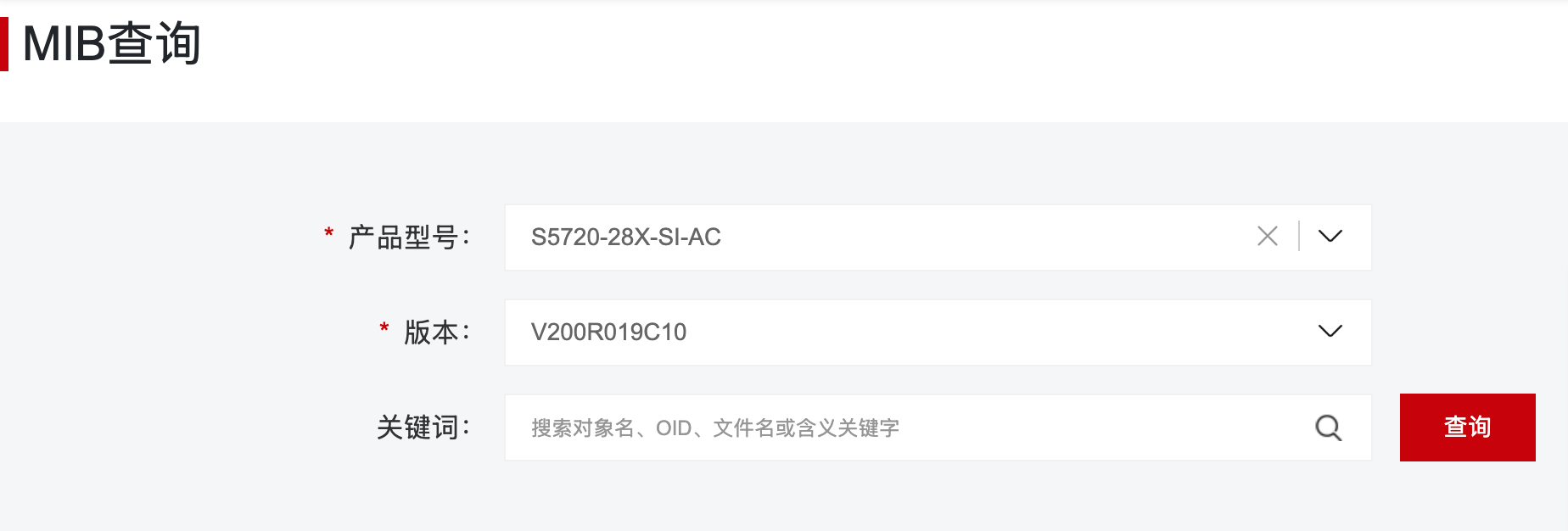

image-20250719224050414

编辑配置文件

官方提供的snmp.yml对华为设备不太友好,所以需要自定义数据采集。

generator格式说明:

https://github.com/prometheus/snmp_exporter/tree/main/generator#file-format

https://github.com/robotneo/networkdevice-monitor/blob/main/generator/huawei/switch/generator_huawei_switch.yml

vim ~/generator.yml
auths:
  public_v2:  # 认证模块名称
    version: 2  # snmp v2c版本
    community: sunday_public  # snmp 团体名

modules:
  huawei_common:  # 华为公共指标模块名称
    walk:
      # 交换机基础信息 温度信息 风扇信息 电源信息
      - 1.3.6.1.2.1.1.1                       # sysDescr 系统的文字描述
      - 1.3.6.1.2.1.1.5                       # sysName 交换机名称
      - 1.3.6.1.4.1.2011.5.25.31.1.1.6.1.1    # hwEntPowerUsedInfoBoardName 板卡实体名称
      - 1.3.6.1.4.1.2011.5.25.31.1.1.1.1.10   # hwEntityUpTime 板卡实体启动时间 单位秒
      - 1.3.6.1.4.1.2011.5.25.31.1.1.1.1.11   # hwEntityTemperature 实体温度 单位°C
      - 1.3.6.1.4.1.2011.5.25.31.1.1.1.1.12   # hwEntityTemperatureThreshold 实体温度高门限 单位°C
      - 1.3.6.1.4.1.2011.5.25.31.1.1.10.1.7   # hwEntityFanState 风扇状态
      - 1.3.6.1.4.1.2011.5.25.31.1.1.10.1.6   # hwEntityFanPresent 风扇的在位状态
      - 1.3.6.1.4.1.2011.5.25.31.1.1.10.1.5   # hwEntityFanSpeed 风扇的转速
      #- 1.3.6.1.4.1.2011.5.25.31.1.1.18.1.1  # hwEntityPwrSlot 电源的槽位号
      - 1.3.6.1.4.1.2011.5.25.31.1.1.18.1.6   # hwEntityPwrState 电源的状态
      - 1.3.6.1.4.1.2011.6.157.1.6            # hwCurrentPower 当前功率mW
      - 1.3.6.1.4.1.2011.6.157.1.3            # hwAveragePower 平均功率mW
      # 交换机CPU和内存信息
      - 1.3.6.1.4.1.2011.5.25.31.1.1.1.1.5    # hwEntityCpuUsage 实体CPU使用率
      - 1.3.6.1.4.1.2011.5.25.31.1.1.1.1.7    # hwEntityMemUsage 实体内存使用率
      - 1.3.6.1.4.1.2011.6.9.1.4.2.1.3        # hwStorageSpace Flash设备空间的大小 单位是千字节
      - 1.3.6.1.4.1.2011.6.9.1.4.2.1.4        # hwStorageSpaceFree Flash设备剩余空间 单位是千字节
      - 1.3.6.1.4.1.2011.6.9.1.4.2.1.5        # hwStorageName Flash设备名称
      #- 1.3.6.1.4.1.2011.6.3.4.1.2            # hwCpuDevDuty 5秒钟内的CPU的平均使用率
      #- 1.3.6.1.4.1.2011.6.3.4.1.3            # hwCpuDuty1min 1分钟内的CPU的平均使用率
      #- 1.3.6.1.4.1.2011.6.3.4.1.4            # hwCpuDuty5min 5分钟内的CPU的平均使用率
      #- 1.3.6.1.4.1.2011.6.3.5.1.1.2          # hwMemoryDevSize 每块板上内存总量
      #- 1.3.6.1.4.1.2011.6.3.5.1.1.3          # hwMemoryDevFree 每块板上空闲的内存总量
      #- 1.3.6.1.4.1.2011.6.3.5.1.1.4          # hwMemoryDevRawSliceUsed 每块板上已占用的raw slice内存总量

    max_repetitions: 30
    retries: 3
    timeout: 5s

    lookups:
      - source_indexes: [hwEntityFanSlot, hwEntityFanSn]
        lookup: hwEntityFanPresent
      - source_indexes: [hwEntityFanSlot, hwEntityFanSn]
        lookup: hwEntityFanState
      - source_indexes: [entPhysicalIndex]
        lookup: 1.3.6.1.4.1.2011.5.25.31.1.1.6.1.1
        #drop_source_indexes: true
      - source_indexes: [hwStorageIndex]
        lookup: hwStorageName

    overrides:
      hwEntityFanPresent:
        ignore: true
      hwEntityFanState:
        ignore: true
      hwEntPowerUsedInfoBoardName:
        ignore: true
        type: DisplayString
      hwStorageName:
        ignore: true
        type: DisplayString

  huawei_core:  # 核心模块指标 基于S12700E-4
    walk:
      # 接口信息
      #- 1.3.6.1.2.1.2.2.1.1                  # ifIndex 接口索引 该值大于零且全局唯一
      #- 1.3.6.1.2.1.2.2.1.2                  # ifDescr 描述接口的字符串
      - 1.3.6.1.2.1.31.1.1.1.1                # ifName 由本地设备分配的接口名 同上指标 取其中之一
      - 1.3.6.1.2.1.2.2.1.7                   # ifAdminStatus 理想的接口状态
      - 1.3.6.1.2.1.2.2.1.8                   # ifOperStatus 接口当前的状态
      - 1.3.6.1.2.1.31.1.1.1.18               # ifAlias 该节点是由网络管理员指定的接口别名 description命令
      - 1.3.6.1.2.1.31.1.1.1.15               # ifHighSpeed 接口当前带宽 单位 Mbit/s
      - 1.3.6.1.2.1.31.1.1.1.6                # ifHCInOctets 接口上接收到的字节总数 byte/s
      - 1.3.6.1.2.1.31.1.1.1.10               # ifHCOutOctets 接口发送的字节总数 byte/s
      - 1.3.6.1.2.1.2.2.1.13                  # ifInDiscards 入方向的被丢弃的报文个数
      - 1.3.6.1.2.1.2.2.1.19                  # ifOutDiscards 出方向的被丢弃的报文个数
      - 1.3.6.1.2.1.2.2.1.14                  # ifInErrors 入方向出错报文个数
      - 1.3.6.1.2.1.2.2.1.20                  # ifOutErrors 出方向出错报文个数
      #- 1.3.6.1.4.1.2011.5.25.41.1.7.1.1.2    # hwIfMonitorCrcErrorStatistics CRC错包统计值
      #- 1.3.6.1.4.1.2011.5.25.41.1.7.1.1.8    # hwIfMonitorInputRate 接口入方向带宽占用率
      #- 1.3.6.1.4.1.2011.5.25.41.1.7.1.1.10   # hwIfMonitorOutputRate 接口出方向带宽占用率

      # 光模块信息
      #- 1.3.6.1.2.1.47.1.1.1.1.1             # entPhysicalIndex 物理实体索引
      - 1.3.6.1.2.1.47.1.1.1.1.7              # entPhysicalName 物理实体名 光模块接口名称
      - 1.3.6.1.4.1.2011.5.25.31.1.1.3.1.8    # hwEntityOpticalRxPower 光模块接收功率 单位 uW
      - 1.3.6.1.4.1.2011.5.25.31.1.1.3.1.9    # hwEntityOpticalTxPower 光模块发送功率 单位 uW
      - 1.3.6.1.4.1.2011.5.25.31.1.1.3.1.20   # hwEntityOpticalRxLowWarnThreshold 光模块接收功率过低的预警门限值 单位 dBm
      - 1.3.6.1.4.1.2011.5.25.31.1.1.3.1.21   # hwEntityOpticalRxHighWarnThreshold 光模块接收功率过高的预警门限值 单位 dBm
      - 1.3.6.1.4.1.2011.5.25.31.1.1.3.1.22   # hwEntityOpticalTxLowWarnThreshold 光模块发送功率过低的预警门限值 单位 dBm
      - 1.3.6.1.4.1.2011.5.25.31.1.1.3.1.23   # hwEntityOpticalTxHighWarnThreshold 光模块发送功率过高的预警门限值 单位 dBm
      # CSS集群状态
      - 1.3.6.1.4.1.2011.5.25.183.3.1.1       # hwCssEnable 使能设备集群功能
      - 1.3.6.1.4.1.2011.5.25.183.3.2.1.8     # hwCssMemberRole 集群角色
      - 1.3.6.1.4.1.2011.5.25.183.3.2.1.7     # hwCssMemberConfigEnable 集群使能状态
      - 1.3.6.1.4.1.2011.5.25.42.2.1.14       # hwMacGlobalStatistics 获取设备上的MAC地址数
      - 1.3.6.1.4.1.2011.5.25.42.2.1.1        # hwL2MaxMacLimit MAC地址限定的最大规则数

    max_repetitions: 30
    retries: 3
    timeout: 5s

    lookups:
      - source_indexes: [ifIndex]
        lookup: ifAlias
        # 如果新的索引唯一 可以删除原来的索引 true
        #drop_source_indexes: false
      - source_indexes: [ifIndex]
        lookup: ifName
      - source_indexes: [ifIndex]
        lookup: ifOperStatus
      - source_indexes: [ifIndex]
        lookup: ifHighSpeed
      - source_indexes: [entPhysicalIndex]
        lookup: entPhysicalName

    overrides:
      ifAlias:
        ignore: true # 忽略IfAlias值,这里只用做标签
      ifName:
        ignore: true
      ifOperStatus:
        ignore: true
      ifHighSpeed:
        ignore: true
      entPhysicalName:
        ignore: true

    filters:
      dynamic:  # 根据接口当前状态收集接口指标
        - oid: 1.3.6.1.2.1.2.2.1.7
          targets:
            - "1.3.6.1.2.1.31.1.1.1.6"
            - "1.3.6.1.2.1.31.1.1.1.10"
            - "1.3.6.1.2.1.2.2.1.13"
            - "1.3.6.1.2.1.2.2.1.19"
            - "1.3.6.1.2.1.2.2.1.14"
            - "1.3.6.1.2.1.2.2.1.20"
          values: ["1"]

  huawei_agg:  # 华为汇聚和接入交换机模块指标
    walk:
      # 接口信息
      #- 1.3.6.1.2.1.2.2.1.1                  # ifIndex 接口索引 该值大于零且全局唯一
      #- 1.3.6.1.2.1.2.2.1.2                  # ifDescr 描述接口的字符串
      - 1.3.6.1.2.1.31.1.1.1.1                # ifName 由本地设备分配的接口名 同上指标 取其中之一
      - 1.3.6.1.2.1.2.2.1.7                   # ifAdminStatus 理想的接口状态
      - 1.3.6.1.2.1.2.2.1.8                   # ifOperStatus 接口当前的状态
      - 1.3.6.1.2.1.31.1.1.1.18               # ifAlias 该节点是由网络管理员指定的接口别名 description命令
      - 1.3.6.1.2.1.31.1.1.1.15               # ifHighSpeed 接口当前带宽 单位 Mbit/s
      - 1.3.6.1.2.1.31.1.1.1.6                # ifHCInOctets 接口上接收到的字节总数 byte/s
      - 1.3.6.1.2.1.31.1.1.1.10               # ifHCOutOctets 接口发送的字节总数 byte/s
      - 1.3.6.1.2.1.2.2.1.13                  # ifInDiscards 入方向的被丢弃的报文个数
      - 1.3.6.1.2.1.2.2.1.19                  # ifOutDiscards 出方向的被丢弃的报文个数
      - 1.3.6.1.2.1.2.2.1.14                  # ifInErrors 入方向出错报文个数
      - 1.3.6.1.2.1.2.2.1.20                  # ifOutErrors 出方向出错报文个数
      #- 1.3.6.1.4.1.2011.5.25.41.1.7.1.1.2    # hwIfMonitorCrcErrorStatistics CRC错包统计值
      #- 1.3.6.1.4.1.2011.5.25.41.1.7.1.1.8    # hwIfMonitorInputRate 接口入方向带宽占用率
      #- 1.3.6.1.4.1.2011.5.25.41.1.7.1.1.10   # hwIfMonitorOutputRate 接口出方向带宽占用率

      # 光模块信息
      #- 1.3.6.1.2.1.47.1.1.1.1.1             # entPhysicalIndex 物理实体索引
      - 1.3.6.1.2.1.47.1.1.1.1.7              # entPhysicalName 物理实体名 光模块接口名称
      - 1.3.6.1.4.1.2011.5.25.31.1.1.3.1.8    # hwEntityOpticalRxPower 光模块接收功率 单位 uW
      - 1.3.6.1.4.1.2011.5.25.31.1.1.3.1.9    # hwEntityOpticalTxPower 光模块发送功率 单位 uW
      - 1.3.6.1.4.1.2011.5.25.31.1.1.3.1.20   # hwEntityOpticalRxLowWarnThreshold 光模块接收功率过低的预警门限值 单位 dBm
      - 1.3.6.1.4.1.2011.5.25.31.1.1.3.1.21   # hwEntityOpticalRxHighWarnThreshold 光模块接收功率过高的预警门限值 单位 dBm
      - 1.3.6.1.4.1.2011.5.25.31.1.1.3.1.22   # hwEntityOpticalTxLowWarnThreshold 光模块发送功率过低的预警门限值 单位 dBm
      - 1.3.6.1.4.1.2011.5.25.31.1.1.3.1.23   # hwEntityOpticalTxHighWarnThreshold 光模块发送功率过高的预警门限值 单位 dBm
      # 堆叠状态
      - 1.3.6.1.4.1.2011.5.25.183.1.1         # hwStackRun 堆叠是否使能
      - 1.3.6.1.4.1.2011.5.25.183.1.2         # hwStackTopoType 环形拓扑还是链式拓扑
      - 1.3.6.1.4.1.2011.5.25.183.1.4         # hwStackSystemMac 堆叠系统MAC
      - 1.3.6.1.4.1.2011.5.25.183.1.5         # hwStackIsStackDevice 设备是否在堆叠环境
      - 1.3.6.1.4.1.2011.5.25.42.2.1.14       # hwMacGlobalStatistics 获取设备上的MAC地址数
      - 1.3.6.1.4.1.2011.5.25.42.2.1.1        # hwL2MaxMacLimit MAC地址限定的最大规则数

    max_repetitions: 30
    retries: 3
    timeout: 5s

    lookups:
      - source_indexes: [ifIndex]
        lookup: ifAlias
        # 如果新的索引唯一 可以删除原来的索引 true
        #drop_source_indexes: false
      - source_indexes: [ifIndex]
        lookup: ifName
      - source_indexes: [ifIndex]
        lookup: ifOperStatus
      - source_indexes: [ifIndex]
        lookup: ifHighSpeed
      - source_indexes: [entPhysicalIndex]
        lookup: entPhysicalName

    overrides:
      ifAlias:
        ignore: true
      ifName:
        ignore: true
      ifOperStatus:
        ignore: true
      ifHighSpeed:
        ignore: true
      entPhysicalName:
        ignore: true

    filters:
      dynamic:  # 根据接口当前状态收集接口指标
        - oid: 1.3.6.1.2.1.2.2.1.7
          targets:
            - "1.3.6.1.2.1.31.1.1.1.6"
            - "1.3.6.1.2.1.31.1.1.1.10"
            - "1.3.6.1.2.1.2.2.1.13"
            - "1.3.6.1.2.1.2.2.1.19"
            - "1.3.6.1.2.1.2.2.1.14"
            - "1.3.6.1.2.1.2.2.1.20"
          values: ["1"]

  huawei_acc:  # 华为接入交换机模块指标 未堆叠
    walk:
      # 接口信息
      #- 1.3.6.1.2.1.2.2.1.1                  # ifIndex 接口索引 该值大于零且全局唯一
      #- 1.3.6.1.2.1.2.2.1.2                  # ifDescr 描述接口的字符串
      - 1.3.6.1.2.1.31.1.1.1.1                # ifName 由本地设备分配的接口名 同上指标 取其中之一
      - 1.3.6.1.2.1.2.2.1.7                   # ifAdminStatus 理想的接口状态
      - 1.3.6.1.2.1.2.2.1.8                   # ifOperStatus 接口当前的状态
      - 1.3.6.1.2.1.31.1.1.1.18               # ifAlias 该节点是由网络管理员指定的接口别名 description命令
      - 1.3.6.1.2.1.31.1.1.1.15               # ifHighSpeed 接口当前带宽 单位 Mbit/s
      - 1.3.6.1.2.1.31.1.1.1.6                # ifHCInOctets 接口上接收到的字节总数 byte/s
      - 1.3.6.1.2.1.31.1.1.1.10               # ifHCOutOctets 接口发送的字节总数 byte/s
      - 1.3.6.1.2.1.2.2.1.13                  # ifInDiscards 入方向的被丢弃的报文个数
      - 1.3.6.1.2.1.2.2.1.19                  # ifOutDiscards 出方向的被丢弃的报文个数
      - 1.3.6.1.2.1.2.2.1.14                  # ifInErrors 入方向出错报文个数
      - 1.3.6.1.2.1.2.2.1.20                  # ifOutErrors 出方向出错报文个数
      #- 1.3.6.1.4.1.2011.5.25.41.1.7.1.1.2    # hwIfMonitorCrcErrorStatistics CRC错包统计值
      #- 1.3.6.1.4.1.2011.5.25.41.1.7.1.1.8    # hwIfMonitorInputRate 接口入方向带宽占用率
      #- 1.3.6.1.4.1.2011.5.25.41.1.7.1.1.10   # hwIfMonitorOutputRate 接口出方向带宽占用率

      # 光模块信息
      #- 1.3.6.1.2.1.47.1.1.1.1.1             # entPhysicalIndex 物理实体索引
      - 1.3.6.1.2.1.47.1.1.1.1.7              # entPhysicalName 物理实体名 光模块接口名称
      - 1.3.6.1.4.1.2011.5.25.31.1.1.3.1.8    # hwEntityOpticalRxPower 光模块接收功率 单位 uW
      - 1.3.6.1.4.1.2011.5.25.31.1.1.3.1.9    # hwEntityOpticalTxPower 光模块发送功率 单位 uW
      - 1.3.6.1.4.1.2011.5.25.31.1.1.3.1.20   # hwEntityOpticalRxLowWarnThreshold 光模块接收功率过低的预警门限值 单位 dBm
      - 1.3.6.1.4.1.2011.5.25.31.1.1.3.1.21   # hwEntityOpticalRxHighWarnThreshold 光模块接收功率过高的预警门限值 单位 dBm
      - 1.3.6.1.4.1.2011.5.25.31.1.1.3.1.22   # hwEntityOpticalTxLowWarnThreshold 光模块发送功率过低的预警门限值 单位 dBm
      - 1.3.6.1.4.1.2011.5.25.31.1.1.3.1.23   # hwEntityOpticalTxHighWarnThreshold 光模块发送功率过高的预警门限值 单位 dBm
      - 1.3.6.1.4.1.2011.5.25.42.2.1.14       # hwMacGlobalStatistics 获取设备上的MAC地址数
      - 1.3.6.1.4.1.2011.5.25.42.2.1.1        # hwL2MaxMacLimit MAC地址限定的最大规则数

    max_repetitions: 30
    retries: 3
    timeout: 5s

    lookups:
      - source_indexes: [ifIndex]
        lookup: ifAlias
        #drop_source_indexes: false # 如果新的索引唯一 可以删除原来的索引 true
      - source_indexes: [ifIndex]
        lookup: ifName
      - source_indexes: [ifIndex]
        lookup: ifOperStatus
      - source_indexes: [ifIndex]
        lookup: ifHighSpeed
      - source_indexes: [entPhysicalIndex]
        lookup: entPhysicalName

    overrides:
      ifAlias:
        ignore: true
      ifName:
        ignore: true
      ifOperStatus:
        ignore: true
      ifHighSpeed:
        ignore: true
      entPhysicalName:
        ignore: true

    filters:
      dynamic:  # 根据接口当前状态收集接口指标
        - oid: 1.3.6.1.2.1.2.2.1.7
          targets:
            - "1.3.6.1.2.1.31.1.1.1.6"
            - "1.3.6.1.2.1.31.1.1.1.10"
            - "1.3.6.1.2.1.2.2.1.13"
            - "1.3.6.1.2.1.2.2.1.19"
            - "1.3.6.1.2.1.2.2.1.14"
            - "1.3.6.1.2.1.2.2.1.20"
          values: ["1"]

模块说明

上面定义了华为交换机不同模块: huawei_commonhuawei_corehuawei_agghuawei_acc ,可以指定模块按需采集,避免全部拉取响应慢

生成采集配置文件

通过编译generator生成二进制可执行文件来生成采集文件

安装go环境

wget https://go.dev/dl/go1.20.5.linux-amd64.tar.gz
tar xf go1.20.5.linux-amd64.tar.gz
mv go /usr/local/
echo export PATH=\$PATH:/usr/local/go/bin > /etc/profile.d/go.sh
source /etc/profile

$ go version
go version go1.20.5 linux/amd64

# 代理加速
$ go env -w GO111MODULE=on
$ go env -w GOPROXY=https://goproxy.cn,direct

编译generator

下载snmp_exporter源码

git clone https://github.com/prometheus/snmp_exporter.git
# 进入generator目录 编译generator
root@mon39:~# cd snmp_exporter/generator
root@mon39:~/snmp_exporter/generator# go build
root@mon39:~/snmp_exporter/generator# ls -lh generator
-rwxr-xr-x 1 root root 8.1M Jul 10 15:55 generator

生成snmp采集文件

# 解压MIB文件
root@mon39:~/snmp_exporter/generator# cp ~/MIB_V200R024C00SPC500.zip .
root@mon39:~/snmp_exporter/generator# unzip MIB_V200R024C00SPC500.zip
root@mon39:~/snmp_exporter/generator# ls -l MIB_V200R024C00SPC500/MIBs/
total 22940
-rw-r--r-- 1 root root   29574 Sep 29  2024 ATM-TC-MIB.mib
...
-rw-r--r-- 1 root root  650012 Sep 29  2024 HUAWEI-AAA-MIB.mib
-rw-r--r-- 1 root root  202807 Sep 29  2024 HUAWEI-ACL-MIB.mib
-rw-r--r-- 1 root root   39998 Sep 29  2024 HUAWEI-ALARM-MIB.mib
...
-rw-r--r-- 1 root root   37638 Sep 29  2024 VRRPV3-MIB.mib

# 备份generator.yml
root@mon39:~/snmp_exporter/generator# mv generator.yml generator.yml.bak

# 复制文件编辑好的采集文件
root@mon39:~/snmp_exporter/generator# cp ~/generator.yml .

# 执行生成采集配置
root@mon39:~/snmp_exporter/generator# ./generator --fail-on-parse-errors generate -m ./MIB_V200R024C00SPC500/MIBs -g ./generator.yml -o ./snmp_huawei_sw.yml

time=2023-07-20T00:34:29.796+08:00 level=INFO source=net_snmp.go:174 msg="Loading MIBs" from=./MIB_V200R024C00SPC500/MIBs
time=2023-07-20T00:34:30.266+08:00 level=INFO source=main.go:57 msg="Generating config for module" module=huawei_common
time=2023-07-20T00:34:30.360+08:00 level=INFO source=main.go:75 msg="Generated metrics" module=huawei_common metrics=13
time=2023-07-20T00:34:30.360+08:00 level=INFO source=main.go:57 msg="Generating config for module" module=huawei_core
time=2023-07-20T00:34:30.534+08:00 level=INFO source=main.go:75 msg="Generated metrics" module=huawei_core metrics=18
time=2023-07-20T00:34:30.534+08:00 level=INFO source=main.go:57 msg="Generating config for module" module=huawei_agg
time=2023-07-20T00:34:30.730+08:00 level=INFO source=main.go:75 msg="Generated metrics" module=huawei_agg metrics=19
time=2023-07-20T00:34:30.730+08:00 level=INFO source=main.go:57 msg="Generating config for module" module=huawei_acc
time=2023-07-20T00:34:30.923+08:00 level=INFO source=main.go:75 msg="Generated metrics" module=huawei_acc metrics=15
time=2023-07-20T00:34:30.930+08:00 level=INFO source=main.go:100 msg="Config written" file=/root/snmp_exporter/generator/snmp_huawei_sw.yml

部署snmp_exporter

root@mon39:~# wget https://github.com/prometheus/snmp_exporter/releases/download/v0.25.0/snmp_exporter-0.25.0.linux-amd64.tar.gz
root@mon39:~# tar xf snmp_exporter-0.25.0.linux-amd64.tar.gz
root@mon39:~# mv snmp_exporter-0.25.0.linux-amd64 /opt/snmp_exporter
root@mon39:~# cd /opt/snmp_exporter
root@mon39:/opt/snmp_exporter# mv snmp.yml snmp.yml.bak
root@mon39:/opt/snmp_exporter# mkdir conf
root@mon39:/opt/snmp_exporter# cp /root/snmp_exporter/generator/snmp_huawei_sw.yml conf/snmp_huawei_sw.yml
# cat snmp_huawei_sw.yml

# WARNING: This file was auto-generated using snmp_exporter generator, manual changes will be lost.
auths:
  public_v2: # SNMP Exporter Web 对应 Auth:
    community: sunday_public # 团体名
    security_level: noAuthNoPriv
    auth_protocol: MD5
    priv_protocol: DES
    version: 2

systemd管理

vim /etc/systemd/system/snmp_exporter.service

[Unit]
Description=snmp_exporter
After=network.target

[Service]
ExecStart=/opt/snmp_exporter/snmp_exporter --config.file=/opt/snmp_exporter/conf/*.yml --snmp.module-concurrency=3
Restart=on-failure

[Install]
WantedBy=multi-user.target

启动服务

systemctl daemon-reload
systemctl start snmp-exporter
systemctl status snmp-exporter

root@mon39:/opt/snmp_exporter# ss -tunlp | grep 9116
tcp   LISTEN 0      4096               *:9116             *:*    users:(("snmp_exporter",pid=1349319,fd=3))

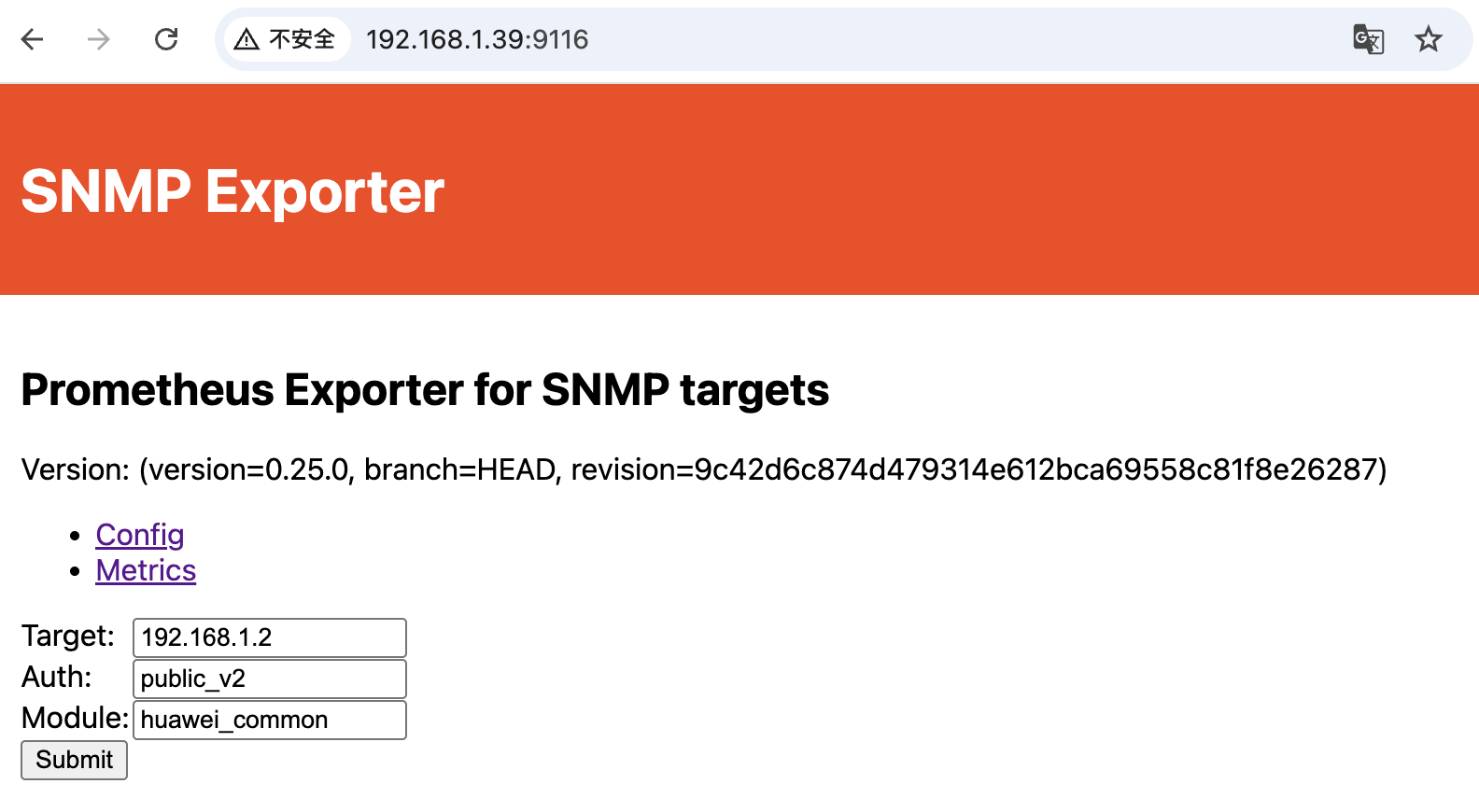

访问snmp_exporter web查看采集
image-20250720013127797

Target: 交换机IP
Auth: yaml配置的public_v2
Module: 要采集的模块,多个用逗号分隔,如huawei_common,huawei_core

http://192.168.1.39:9116/snmp?target=192.168.1.2&auth=public_v2&module=huawei_common

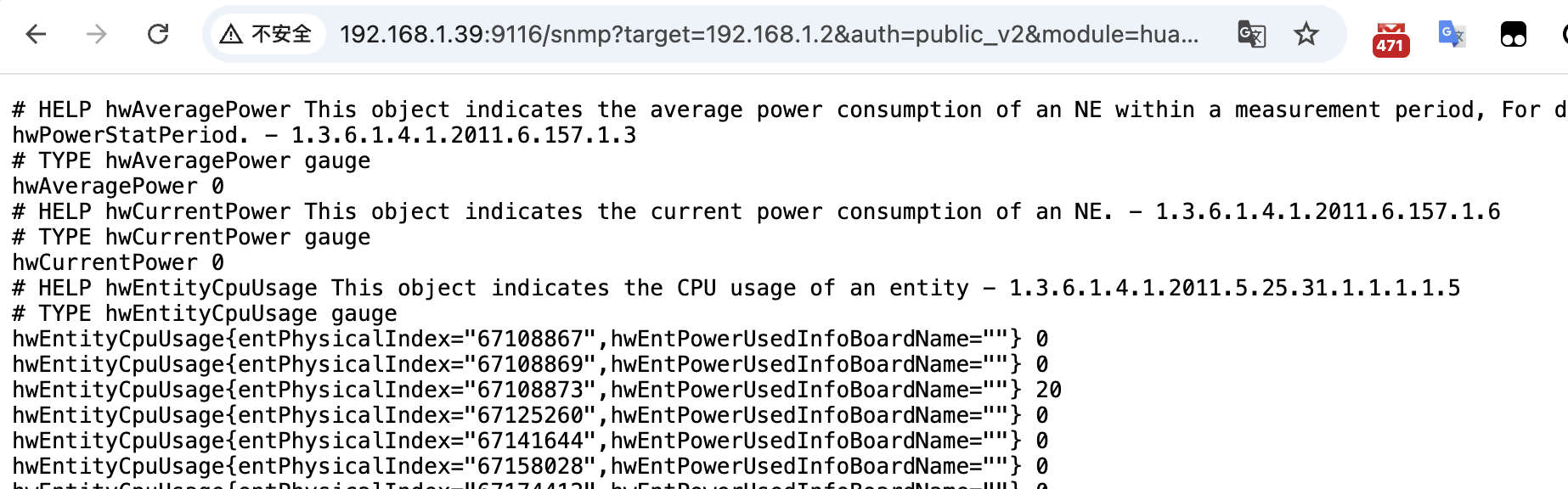

image-20250720013419732

测试同时采集两个模块

http://192.168.1.39:9116/snmp?target=192.168.1.2&auth=public_v2&module=huawei_common%2Chuawei_core

配置Prometheus

配置 Prometheus 定时从 SNMP Exporter 拉取采集数据,实现华为交换机的多设备任务采集。

mkdir /opt/prometheus/sd_config/
scrape_configs:
  - job_name: "huawei_sw"
    scrape_interval: 60s
    scrape_timeout: 60s
    file_sd_configs:
      - files:
        - /opt/prometheus/sd_config/huawei_sw.yml
        refresh_interval: 2m # 热加载间隔
    # 将/metrics 改为是 /snmp
    metrics_path: /snmp
    # 标签relabeling
    relabel_configs:
    - source_labels: ["__address__"]
      target_label: __param_target
    - source_labels: ["__param_target"]
      target_label: instance
    - target_label: __address__
      # snmp_exporter 服务IP和端口
      replacement: 192.168.1.39:9116
    - source_labels: ["module"]
      target_label: __param_module
    - source_labels: ["auth"]
      target_label: __param_auth

通过 file_sd_configs 方式可以热加载新修改的/opt/prometheus/sd_config/huawei_sw.yml

vim /opt/prometheus/sd_config/huawei_sw.yml
- labels:
    # generator.yml中定义的指标模块名称 如果有多个可以写多个模块名
    module: huawei_common,huawei_core
    # generator.yml 中定义的认证模块名
    auth: public_v2
    # 自定义的标签 可选
    brand: Huawei
    model: S5720S-28X-LI-AC
  targets:
    - 192.168.1.2

# 可同时配置其他交换机采集指定模块
- labels:
    module: huawei_common
    auth: public_v2
    brand: Huawei
    model: S5720-36C-EI-AC
  targets:
    - 192.168.1.3

使用 Prometheus api热加载 Prometheus 配置

curl -X POST localhost:9090/-/reload
curl -X GET localhost:9090/-/healthy

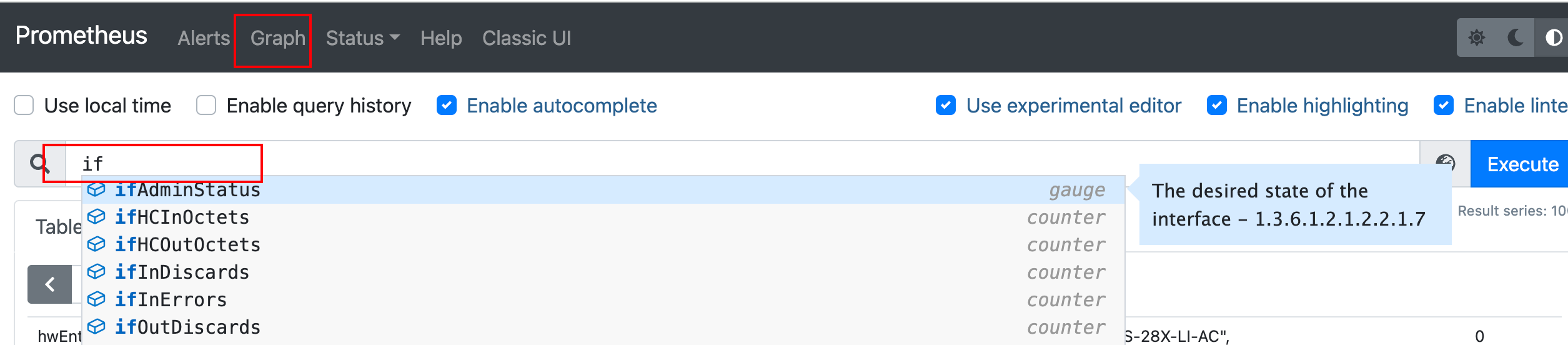

image-20250720020000016

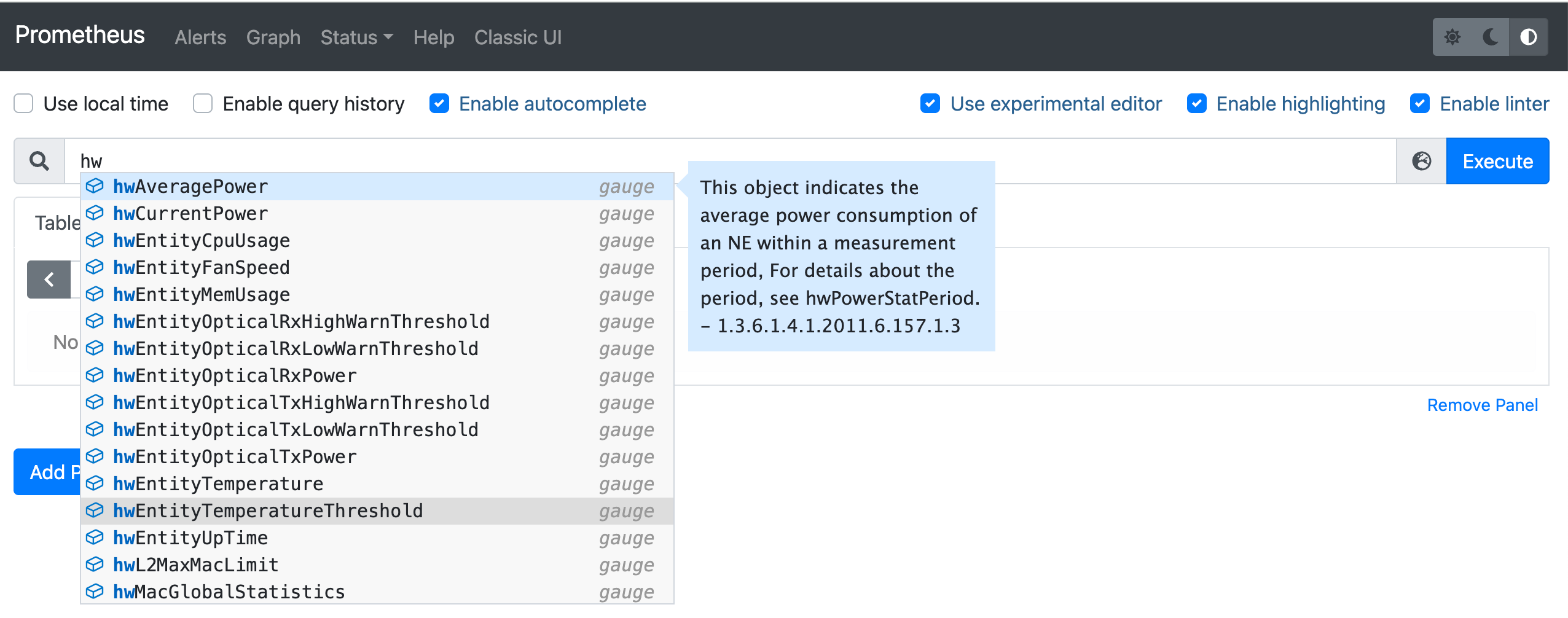

image-20250720015917333

Grafana面板

https://oss.sundayhk.com/file/snmp/huawei_snmp_grafana.json

image-20250720021336628

AlterManager

groups:
- name: 华为交换机告警
  rules:
  - alert: 交换机设备风扇状态
    expr: hwEntityFanSpeed == 0
    for: 1m
    labels:
      alertype: switch
      severity: Critical
    annotations:
      description: "**{{ $labels.hostname }} - 设备风扇转速为 {{ $value }}% **  \n  > 风扇状态值:{{ $labels.hwEntityFanState }} - 风扇在位状态值:{{ $labels.hwEntityFanPresent }}"

  - alert: CPU使用率超限
    expr: 0 < hwEntityCpuUsage{job=~"huawei_sw|huawei_sw"} >= 60
    for: 5m
    labels:
      alertype: switch
      severity: Critical
    annotations:
      description: "**{{ $labels.hostname }} - 交换机CPU使用率超限** \n  > 当前使用率 = {{ $value }}%"

  - alert: 内存使用率超限
    expr: 0 < hwEntityMemUsage{job=~"huawei_sw|huawei_sw"} >= 85
    for: 10m
    labels:
      alertype: switch
      severity: Critical
    annotations:
      description: "**{{$labels.hwWlanIDIndexedApName}} - 交换机内存使用率超限**  \n  > 当前使用率 = {{ $value }}%"

链接

https://zhuanlan.zhihu.com/p/677630980
https://cloud.tencent.com/developer/article/1943784

相关文章

kube-promethus 监控Rabbitmq
kube-prometheus 监控Kafka
kube-prometheus监控MySQL
kube-prometheus监控Redis

发布评论
